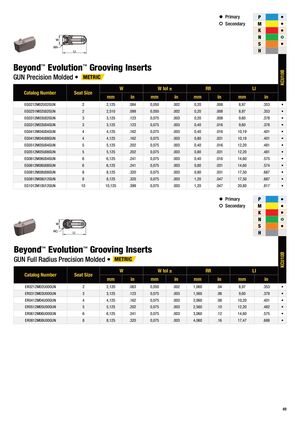

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 49

• Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUN Precision Molded • METRIC W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in EG0212M02U02GUN 2 2,125 .084 0,050 .002 0,20 .008 8,97 .353 • EG0251M02U02GUN 2 2,510 .099 0,050 .002 0,20 .008 8,97 .353 • EG0312M03U02GUN 3 3,125 .123 0,075 .003 0,20 .008 9,60 .378 • EG0312M03U04GUN 3 3,125 .123 0,075 .003 0,40 .016 9,60 .378 • EG0412M04U04GUN 4 4,125 .162 0,075 .003 0,40 .016 10,19 .401 • EG0412M04U08GUN 4 4,125 .162 0,075 .003 0,80 .031 10,19 .401 • EG0512M05U04GUN 5 5,125 .202 0,075 .003 0,40 .016 12,20 .481 • EG0512M05U08GUN 5 5,125 .202 0,075 .003 0,80 .031 12,20 .481 • EG0612M06U04GUN 6 6,125 .241 0,075 .003 0,40 .016 14,60 .575 • EG0612M06U08GUN 6 6,125 .241 0,075 .003 0,80 .031 14,60 .574 • EG0812M08U08GUN 8 8,125 .320 0,075 .003 0,80 .031 17,50 .687 • EG0812M08U12GUN 8 8,125 .320 0,075 .003 1,20 .047 17,50 .687 • EG1012M10U12GUN 10 10,125 .399 0,075 .003 1,20 .047 20,80 .817 • • Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUN Full Radius Precision Molded • METRIC W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in ER0212M02U00GUN 2 2,120 .083 0,050 .002 1,060 .04 8,97 .353 • ER0312M03U00GUN 3 3,125 .123 0,075 .003 1,560 .06 9,60 .378 • ER0412M04U00GUN 4 4,125 .162 0,075 .003 2,060 .08 10,20 .401 • ER0512M05U00GUN 5 5,125 .202 0,075 .003 2,560 .10 12,20 .482 • ER0612M06U00GUN 6 6,125 .241 0,075 .003 3,060 .12 14,60 .575 • ER0812M08U00GUN 8 8,125 .320 0,075 .003 4,060 .16 17,47 .688 • 49
