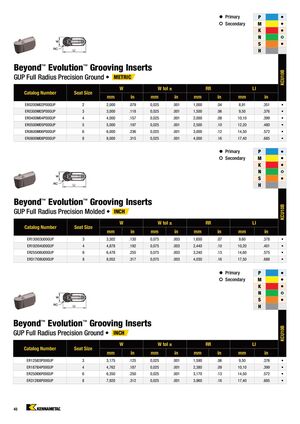

• Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Full Radius Precision Ground • METRIC W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in ER0200M02P00GUP 2 2,000 .079 0,025 .001 1,000 .04 8,91 .351 • ER0300M03P00GUP 3 3,000 .118 0,025 .001 1,500 .06 9,50 .376 • ER0400M04P00GUP 4 4,000 .157 0,025 .001 2,000 .08 10,10 .399 • ER0500M05P00GUP 5 5,000 .197 0,025 .001 2,500 .10 12,20 .480 • ER0600M06P00GUP 6 6,000 .236 0,025 .001 3,000 .12 14,50 .572 • ER0800M08P00GUP 8 8,000 .315 0,025 .001 4,000 .16 17,40 .685 • • Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Full Radius Precision Molded • INCH W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in ER130I03U00GUP 3 3,302 .130 0,075 .003 1,650 .07 9,60 .378 • ER192I04U00GUP 4 4,878 .192 0,075 .003 2,440 .10 10,20 .401 • ER255I06U00GUP 6 6,478 .255 0,075 .003 3,240 .13 14,60 .575 • ER317I08U00GUP 8 8,052 .317 0,075 .003 4,030 .16 17,50 .688 • • Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Full Radius Precision Ground • INCH W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in ER125I03P00GUP 3 3,175 .125 0,025 .001 1,590 .06 9,50 .376 • ER187I04P00GUP 4 4,762 .187 0,025 .001 2,380 .09 10,10 .399 • ER250I06P00GUP 6 6,350 .250 0,025 .001 3,170 .13 14,50 .572 • ER312I08P00GUP 8 7,920 .312 0,025 .001 3,960 .16 17,40 .685 • 48
