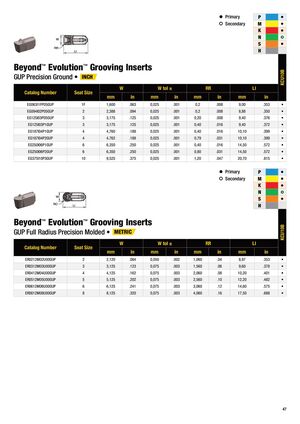

• Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Precision Ground • INCH W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in EG063I1FP05GUP 1F 1,600 .063 0,025 .001 0,2 .008 9,00 .353 • EG094I02P05GUP 2 2,388 .094 0,025 .001 0,2 .008 8,88 .350 • EG125I03P05GUP 3 3,175 .125 0,025 .001 0,20 .008 9,40 .376 • EG125I03P1GUP 3 3,175 .125 0,025 .001 0,40 .016 9,40 .372 • EG187I04P1GUP 4 4,760 .188 0,025 .001 0,40 .016 10,10 .399 • EG187I04P2GUP 4 4,762 .188 0,025 .001 0,79 .031 10,10 .399 • EG250I06P1GUP 6 6,350 .250 0,025 .001 0,40 .016 14,50 .572 • EG250I06P2GUP 6 6,350 .250 0,025 .001 0,80 .031 14,50 .572 • EG375I10P3GUP 10 9,525 .375 0,025 .001 1,20 .047 20,70 .815 • • Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Full Radius Precision Molded • METRIC W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in ER0212M02U00GUP 2 2,120 .084 0,050 .002 1,060 .04 8,97 .353 • ER0312M03U00GUP 3 3,125 .123 0,075 .003 1,560 .06 9,60 .378 • ER0412M04U00GUP 4 4,125 .162 0,075 .003 2,060 .08 10,20 .401 • ER0512M05U00GUP 5 5,125 .202 0,075 .003 2,560 .10 12,20 .482 • ER0612M06U00GUP 6 6,125 .241 0,075 .003 3,060 .12 14,60 .575 • ER0812M08U00GUP 8 8,125 .320 0,075 .003 4,060 .16 17,50 .688 • 47
