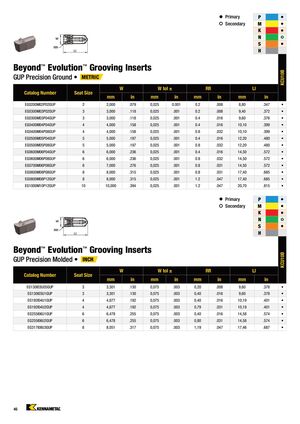

• Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Precision Ground • METRIC W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in EG0200M02P02GUP 2 2,000 .079 0,025 0.001 0.2 .008 8,80 .347 • EG0300M03P02GUP 3 3,000 .118 0,025 .001 0.2 .008 9,40 .372 • EG0300M03P04GUP 3 3,000 .118 0,025 .001 0.4 .016 9,60 .376 • EG0400M04P04GUP 4 4,000 .158 0,025 .001 0.4 .016 10,10 .399 • EG0400M04P08GUP 4 4,000 .158 0,025 .001 0.8 .032 10,10 .399 • EG0500M05P04GUP 5 5,000 .197 0,025 .001 0.4 .016 12,20 .480 • EG0500M05P08GUP 5 5,000 .197 0,025 .001 0.8 .032 12,20 .480 • EG0600M06P04GUP 6 6,000 .236 0,025 .001 0.4 .016 14,50 .572 • EG0600M06P08GUP 6 6,000 .236 0,025 .001 0.8 .032 14,50 .572 • EG0700M06P08GUP 6 7,000 .276 0,025 .001 0.8 .031 14,50 .572 • EG0800M08P08GUP 8 8,000 .315 0,025 .001 0.8 .031 17,40 .685 • EG0800M08P12GUP 8 8,000 .315 0,025 .001 1.2 .047 17,40 .685 • EG1000M10P12GUP 10 10,000 .394 0,025 .001 1.2 .047 20,70 .815 • • Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Precision Molded • INCH W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in EG130I03U05GUP 3 3,301 .130 0,075 .003 0,20 .008 9,60 .378 • EG130I03U1GUP 3 3,301 .130 0,075 .003 0,40 .016 9,60 .378 • EG192I04U1GUP 4 4,877 .192 0,075 .003 0,40 .016 10,19 .401 • EG192I04U2GUP 4 4,877 .192 0,075 .003 0,79 .031 10,19 .401 • EG255I06U1GUP 6 6,478 .255 0,075 .003 0,40 .016 14,58 .574 • EG255I06U2GUP 6 6,478 .255 0,075 .003 0,80 .031 14,58 .574 • EG317I08U3GUP 8 8,051 .317 0,075 .003 1,19 .047 17,46 .687 • 46
