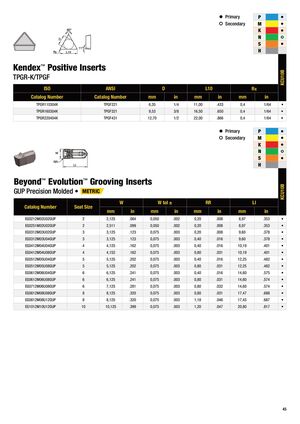

• Primary P • • Secondary M • K • N • S • H Kendex™ Positive Inserts KCU10B TPGR-K/TPGF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPGR110304K TPGF221 6,35 1/4 11,00 .433 0,4 1/64 • TPGR160304K TPGF321 9,53 3/8 16,50 .650 0,4 1/64 • TPGR220404K TPGF431 12,70 1/2 22,00 .866 0,4 1/64 • • Primary P • • Secondary M • K • N • S • H Beyond™ Evolution™ Grooving Inserts KCU10B GUP Precision Molded • METRIC W W tol ± RR LI Catalog Number Seat Size mm in mm in mm in mm in EG0212M02U02GUP 2 2,125 .084 0,050 .002 0,20 .008 8,97 .353 • EG0251M02U02GUP 2 2,511 .099 0,050 .002 0,20 .008 8,97 .353 • EG0312M03U02GUP 3 3,125 .123 0,075 .003 0,20 .008 9,60 .378 • EG0312M03U04GUP 3 3,125 .123 0,075 .003 0,40 .016 9,60 .378 • EG0412M04U04GUP 4 4,125 .162 0,075 .003 0,40 .016 10,19 .401 • EG0412M04U08GUP 4 4,152 .162 0,075 .003 0,80 .031 10,19 .401 • EG0512M05U04GUP 5 5,125 .202 0,075 .003 0,40 .016 12,25 .482 • EG0512M05U08GUP 5 5,125 .202 0,075 .003 0,80 .031 12,25 .482 • EG0612M06U04GUP 6 6,125 .241 0,075 .003 0,40 .016 14,60 .575 • EG0612M06U08GUP 6 6,125 .241 0,075 .003 0,80 .031 14,60 .574 • EG0712M06U08GUP 6 7,125 .281 0,075 .003 0,80 .032 14,60 .574 • EG0812M08U08GUP 8 8,125 .320 0,075 .003 0,80 .031 17,47 .688 • EG0812M08U12GUP 8 8,125 .320 0,075 .003 1,18 .046 17,45 .687 • EG1012M10U12GUP 10 10,125 .399 0,075 .003 1,20 .047 20,80 .817 • 45
