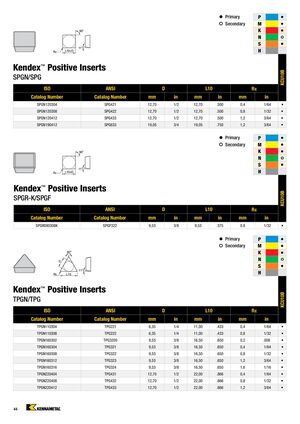

• Primary P • • Secondary M • K • N • S • H Kendex™ Positive Inserts KCU10B SPGN/SPG ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in SPGN120304 SPG421 12,70 1/2 12,70 .500 0,4 1/64 • SPGN120308 SPG422 12,70 1/2 12,70 .500 0,8 1/32 • SPGN120412 SPG433 12,70 1/2 12,70 .500 1,2 3/64 • SPGN190412 SPG633 19,05 3/4 19,05 .750 1,2 3/64 • • Primary P • • Secondary M • K • N • S • H Kendex™ Positive Inserts KCU10B SPGR-K/SPGF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in SPGR090308K SPGF322 9,53 3/8 9,53 .375 0.8 1/32 • • Primary P • • Secondary M • K • N • S • H Kendex™ Positive Inserts KCU10B TPGN/TPG ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPGN110304 TPG221 6,35 1/4 11,00 .433 0,4 1/64 • TPGN110308 TPG222 6,35 1/4 11,00 .433 0,8 1/32 • TPGN160302 TPG3205 9,53 3/8 16,50 .650 0,2 .008 • TPGN160304 TPG321 9,53 3/8 16,50 .650 0,4 1/64 • TPGN160308 TPG322 9,53 3/8 16,50 .650 0,8 1/32 • TPGN160312 TPG323 9,53 3/8 16,50 .650 1,2 3/64 • TPGN160316 TPG324 9,53 3/8 16,50 .650 1,6 1/16 • TPGN220404 TPG431 12,70 1/2 22,00 .866 0,4 1/64 • TPGN220408 TPG432 12,70 1/2 22,00 .866 0,8 1/32 • TPGN220412 TPG433 12,70 1/2 22,00 .866 1,2 3/64 • 44
