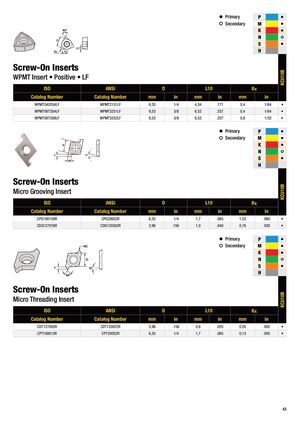

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 43

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B WPMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WPMT040204LF WPMT2151LF 6,35 1/4 4,34 .171 0,4 1/64 • WPMT06T304LF WPMT3251LF 9,53 3/8 6,52 .257 0,4 1/64 • WPMT06T308LF WPMT3252LF 9,53 3/8 6,52 .257 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B Micro Grooving Insert ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CPG190150R CPG20602R 6,35 1/4 1,7 .065 1,52 .060 • CDG127076R CDG120302R 3,96 .156 1,0 .040 0,76 .030 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B Micro Threading Insert ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CDT127005R CDT120022R 3,96 .156 0,6 .025 0,05 .002 • CPT190013R CPT20052R 6,35 1/4 1,7 .065 0,13 .005 • 43
