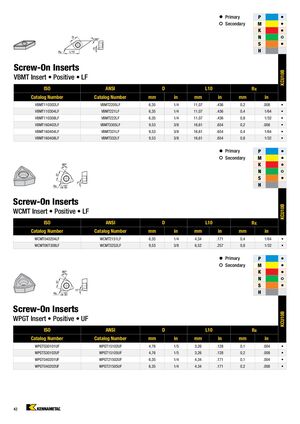

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 42

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B VBMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VBMT110302LF VBMT2205LF 6,35 1/4 11,07 .436 0,2 .008 • VBMT110304LF VBMT221LF 6,35 1/4 11,07 .436 0,4 1/64 • VBMT110308LF VBMT222LF 6,35 1/4 11,07 .436 0,8 1/32 • VBMT160402LF VBMT3305LF 9,53 3/8 16,61 .654 0,2 .008 • VBMT160404LF VBMT331LF 9,53 3/8 16,61 .654 0,4 1/64 • VBMT160408LF VBMT332LF 9,53 3/8 16,61 .654 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B WCMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WCMT040204LF WCMT2151LF 6,35 1/4 4,34 .171 0,4 1/64 • WCMT06T308LF WCMT3252LF 9,53 3/8 6,52 .257 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B WPGT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WPGTS30101UF WPGT15102UF 4,76 1/5 3,26 .128 0,1 .004 • WPGTS30102UF WPGT15105UF 4,76 1/5 3,26 .128 0,2 .008 • WPGT040201UF WPGT21502UF 6,35 1/4 4,34 .171 0,1 .004 • WPGT040202UF WPGT21505UF 6,35 1/4 4,34 .171 0,2 .008 • 42
