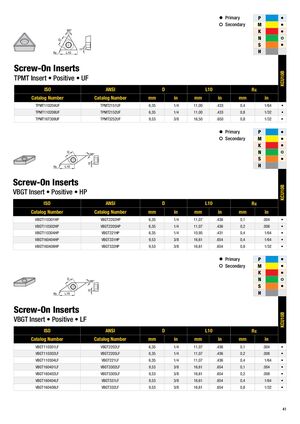

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 41

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPMT110204UF TPMT2151UF 6,35 1/4 11,00 .433 0,4 1/64 • TPMT110208UF TPMT2152UF 6,35 1/4 11,00 .433 0,8 1/32 • TPMT16T308UF TPMT3252UF 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B VBGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VBGT110301HP VBGT2202HP 6,35 1/4 11,07 .436 0,1 .004 • VBGT110302HP VBGT2205HP 6,35 1/4 11,07 .436 0,2 .008 • VBGT110304HP VBGT221HP 6,35 1/4 10,95 .431 0,4 1/64 • VBGT160404HP VBGT331HP 9,53 3/8 16,61 .654 0,4 1/64 • VBGT160408HP VBGT332HP 9,53 3/8 16,61 .654 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B VBGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VBGT110301LF VBGT2202LF 6,35 1/4 11,07 .436 0,1 .004 • VBGT110302LF VBGT2205LF 6,35 1/4 11,07 .436 0,2 .008 • VBGT110304LF VBGT221LF 6,35 1/4 11,07 .436 0,4 1/64 • VBGT160401LF VBGT3302LF 9,53 3/8 16,61 .654 0,1 .004 • VBGT160402LF VBGT3305LF 9,53 3/8 16,61 .654 0,2 .008 • VBGT160404LF VBGT331LF 9,53 3/8 16,61 .654 0,4 1/64 • VBGT160408LF VBGT332LF 9,53 3/8 16,61 .654 0,8 1/32 • 41
