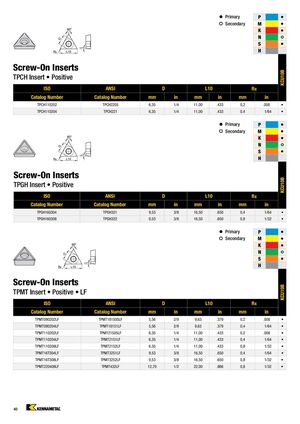

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 40

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPCH Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPCH110202 TPCH2205 6,35 1/4 11,00 .433 0,2 .008 • TPCH110204 TPCH221 6,35 1/4 11,00 .433 0,4 1/64 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPGH Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPGH160304 TPGH321 9,53 3/8 16,50 .650 0,4 1/64 • TPGH160308 TPGH322 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPMT090202LF TPMT181505LF 5,56 2/9 9,63 .379 0,2 .008 • TPMT090204LF TPMT18151LF 5,56 2/9 9,63 .379 0,4 1/64 • TPMT110202LF TPMT21505LF 6,35 1/4 11,00 .433 0,2 .008 • TPMT110204LF TPMT2151LF 6,35 1/4 11,00 .433 0,4 1/64 • TPMT110208LF TPMT2152LF 6,35 1/4 11,00 .433 0,8 1/32 • TPMT16T304LF TPMT3251LF 9,53 3/8 16,50 .650 0,4 1/64 • TPMT16T308LF TPMT3252LF 9,53 3/8 16,50 .650 0,8 1/32 • TPMT220408LF TPMT432LF 12,70 1/2 22,00 .866 0,8 1/32 • 40
