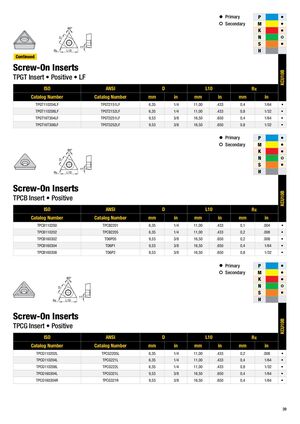

• Primary P • • Secondary M • K • N • S • H Continued Screw-On Inserts KCU10B TPGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPGT110204LF TPGT2151LF 6,35 1/4 11,00 .433 0,4 1/64 • TPGT110208LF TPGT2152LF 6,35 1/4 11,00 .433 0,8 1/32 • TPGT16T304LF TPGT3251LF 9,53 3/8 16,50 .650 0,4 1/64 • TPGT16T308LF TPGT3252LF 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPCB Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPCB1102S0 TPCB2201 6,35 1/4 11,00 .433 0,1 .004 • TPCB110202 TPCB2205 6,35 1/4 11,00 .433 0,2 .008 • TPCB160302 TD6P05 9,53 3/8 16,50 .650 0,2 .008 • TPCB160304 TD6P1 9,53 3/8 16,50 .650 0,4 1/64 • TPCB160308 TD6P2 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPCG Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPCG110202L TPCG2205L 6,35 1/4 11,00 .433 0,2 .008 • TPCG110204L TPCG221L 6,35 1/4 11,00 .433 0,4 1/64 • TPCG110208L TPCG222L 6,35 1/4 11,00 .433 0,8 1/32 • TPCG160304L TPCG321L 9,53 3/8 16,50 .650 0,4 1/64 • TPCG160304R TPCG321R 9,53 3/8 16,50 .650 0,4 1/64 • 39
