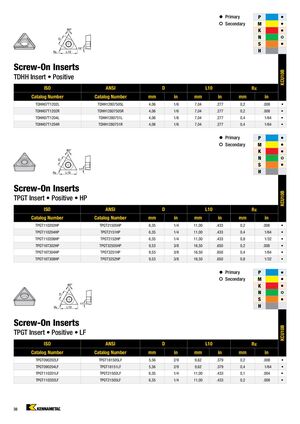

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 38

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TDHH Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TDHH07T1202L TDHH12807505L 4,06 1/6 7,04 .277 0,2 .008 • TDHH07T1202R TDHH12807505R 4,06 1/6 7,04 .277 0,2 .008 • TDHH07T1204L TDHH1280751L 4,06 1/6 7,04 .277 0,4 1/64 • TDHH07T1204R TDHH1280751R 4,06 1/6 7,04 .277 0,4 1/64 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPGT110202HP TPGT21505HP 6,35 1/4 11,00 .433 0,2 .008 • TPGT110204HP TPGT2151HP 6,35 1/4 11,00 .433 0,4 1/64 • TPGT110208HP TPGT2152HP 6,35 1/4 11,00 .433 0,8 1/32 • TPGT16T302HP TPGT32505HP 9,53 3/8 16,50 .650 0,2 .008 • TPGT16T304HP TPGT3251HP 9,53 3/8 16,50 .650 0,4 1/64 • TPGT16T308HP TPGT3252HP 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TPGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TPGT090202LF TPGT181505LF 5,56 2/9 9,62 .379 0,2 .008 • TPGT090204LF TPGT18151LF 5,56 2/9 9,62 .379 0,4 1/64 • TPGT110201LF TPGT21502LF 6,35 1/4 11,00 .433 0,1 .004 • TPGT110202LF TPGT21505LF 6,35 1/4 11,00 .433 0,2 .008 • 38
