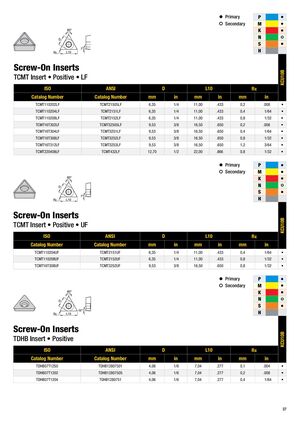

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 37

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TCMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TCMT110202LF TCMT21505LF 6,35 1/4 11,00 .433 0,2 .008 • TCMT110204LF TCMT2151LF 6,35 1/4 11,00 .433 0,4 1/64 • TCMT110208LF TCMT2152LF 6,35 1/4 11,00 .433 0,8 1/32 • TCMT16T302LF TCMT32505LF 9,53 3/8 16,50 .650 0,2 .008 • TCMT16T304LF TCMT3251LF 9,53 3/8 16,50 .650 0,4 1/64 • TCMT16T308LF TCMT3252LF 9,53 3/8 16,50 .650 0,8 1/32 • TCMT16T312LF TCMT3253LF 9,53 3/8 16,50 .650 1,2 3/64 • TCMT220408LF TCMT432LF 12,70 1/2 22,00 .866 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TCMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TCMT110204UF TCMT2151UF 6,35 1/4 11,00 .433 0,4 1/64 • TCMT110208UF TCMT2152UF 6,35 1/4 11,00 .433 0,8 1/32 • TCMT16T308UF TCMT3252UF 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TDHB Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TDHB07T12S0 TDHB12807501 4,06 1/6 7,04 .277 0,1 .004 • TDHB07T1202 TDHB12807505 4,06 1/6 7,04 .277 0,2 .008 • TDHB07T1204 TDHB1280751 4,06 1/6 7,04 .277 0,4 1/64 • 37
