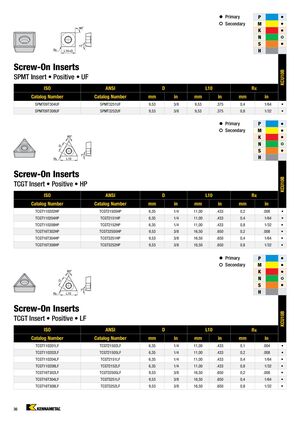

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 36

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B SPMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in SPMT09T304UF SPMT3251UF 9,53 3/8 9,53 .375 0,4 1/64 • SPMT09T308UF SPMT3252UF 9,53 3/8 9,53 .375 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TCGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TCGT110202HP TCGT21505HP 6,35 1/4 11,00 .433 0,2 .008 • TCGT110204HP TCGT2151HP 6,35 1/4 11,00 .433 0,4 1/64 • TCGT110208HP TCGT2152HP 6,35 1/4 11,00 .433 0,8 1/32 • TCGT16T302HP TCGT32505HP 9,53 3/8 16,50 .650 0,2 .008 • TCGT16T304HP TCGT3251HP 9,53 3/8 16,50 .650 0,4 1/64 • TCGT16T308HP TCGT3252HP 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B TCGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TCGT110201LF TCGT21502LF 6,35 1/4 11,00 .433 0,1 .004 • TCGT110202LF TCGT21505LF 6,35 1/4 11,00 .433 0,2 .008 • TCGT110204LF TCGT2151LF 6,35 1/4 11,00 .433 0,4 1/64 • TCGT110208LF TCGT2152LF 6,35 1/4 11,00 .433 0,8 1/32 • TCGT16T302LF TCGT32505LF 9,53 3/8 16,50 .650 0,2 .008 • TCGT16T304LF TCGT3251LF 9,53 3/8 16,50 .650 0,4 1/64 • TCGT16T308LF TCGT3252LF 9,53 3/8 16,50 .650 0,8 1/32 • 36
