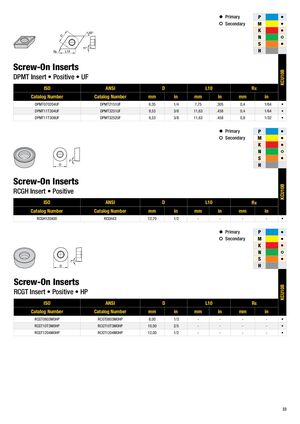

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DPMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DPMT070204UF DPMT2151UF 6,35 1/4 7,75 .305 0,4 1/64 • DPMT11T304UF DPMT3251UF 9,53 3/8 11,63 .458 0,4 1/64 • DPMT11T308UF DPMT3252UF 9,53 3/8 11,63 .458 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B RCGH Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in RCGH120400 RCGH43 12,70 1/2 - - - - • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B RCGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in RCGT0803M0HP RCGT0803M0HP 8,00 1/3 - - - - • RCGT10T3M0HP RCGT10T3M0HP 10,00 2/5 - - - - • RCGT1204M0HP RCGT1204M0HP 12,00 1/2 - - - - • 33
