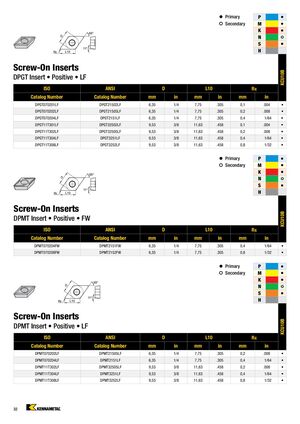

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 32

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DPGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DPGT070201LF DPGT21502LF 6,35 1/4 7,75 .305 0,1 .004 • DPGT070202LF DPGT21505LF 6,35 1/4 7,75 .305 0,2 .008 • DPGT070204LF DPGT2151LF 6,35 1/4 7,75 .305 0,4 1/64 • DPGT11T301LF DPGT32502LF 9,53 3/8 11,63 .458 0,1 .004 • DPGT11T302LF DPGT32505LF 9,53 3/8 11,63 .458 0,2 .008 • DPGT11T304LF DPGT3251LF 9,53 3/8 11,63 .458 0,4 1/64 • DPGT11T308LF DPGT3252LF 9,53 3/8 11,63 .458 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DPMT Insert • Positive • FW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DPMT070204FW DPMT2151FW 6,35 1/4 7,75 .305 0,4 1/64 • DPMT070208FW DPMT2152FW 6,35 1/4 7,75 .305 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DPMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DPMT070202LF DPMT21505LF 6,35 1/4 7,75 .305 0,2 .008 • DPMT070204LF DPMT2151LF 6,35 1/4 7,75 .305 0,4 1/64 • DPMT11T302LF DPMT32505LF 9,53 3/8 11,63 .458 0,2 .008 • DPMT11T304LF DPMT3251LF 9,53 3/8 11,63 .458 0,4 1/64 • DPMT11T308LF DPMT3252LF 9,53 3/8 11,63 .458 0,8 1/32 • 32
