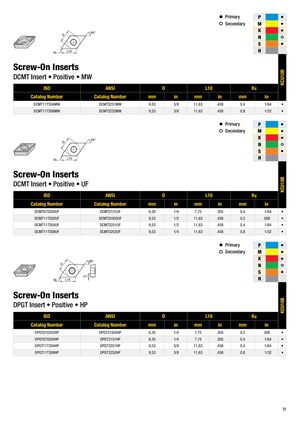

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 31

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DCMT Insert • Positive • MW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCMT11T304MW DCMT3251MW 9,53 3/8 11,63 .458 0,4 1/64 • DCMT11T308MW DCMT3252MW 9,53 3/8 11,63 .458 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DCMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCMT070204UF DCMT2151UF 6,35 1/4 7,75 .305 0,4 1/64 • DCMT11T302UF DCMT32505UF 9,53 1/2 11,63 .458 0,2 .008 • DCMT11T304UF DCMT3251UF 9,53 1/2 11,63 .458 0,4 1/64 • DCMT11T308UF DCMT3252UF 9,53 1/4 11,63 .458 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DPGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DPGT070202HP DPGT21505HP 6,35 1/4 7,75 .305 0,2 .008 • DPGT070204HP DPGT2151HP 6,35 1/4 7,75 .305 0,4 1/64 • DPGT11T304HP DPGT3251HP 9,53 3/8 11,63 .458 0,4 1/64 • DPGT11T308HP DPGT3252HP 9,53 3/8 11,63 .458 0,8 1/32 • 31
