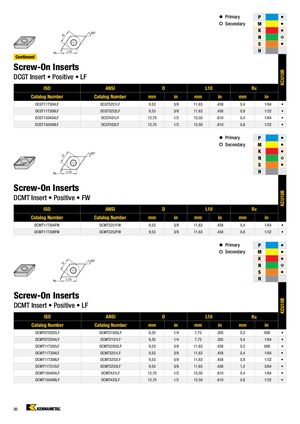

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 30

• Primary P • • Secondary M • K • N • S • H Continued Screw-On Inserts KCU10B DCGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCGT11T304LF DCGT3251LF 9,53 3/8 11,63 .458 0,4 1/64 • DCGT11T308LF DCGT3252LF 9,53 3/8 11,63 .458 0,8 1/32 • DCGT150404LF DCGT431LF 12,70 1/2 15,50 .610 0,4 1/64 • DCGT150408LF DCGT432LF 12,70 1/2 15,50 .610 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DCMT Insert • Positive • FW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCMT11T304FW DCMT3251FW 9,53 3/8 11,63 .458 0,4 1/64 • DCMT11T308FW DCMT3252FW 9,53 3/8 11,63 .458 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DCMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCMT070202LF DCMT21505LF 6,35 1/4 7,75 .305 0,2 .008 • DCMT070204LF DCMT2151LF 6,35 1/4 7,75 .305 0,4 1/64 • DCMT11T302LF DCMT32505LF 9,53 3/8 11,63 .458 0,2 .008 • DCMT11T304LF DCMT3251LF 9,53 3/8 11,63 .458 0,4 1/64 • DCMT11T308LF DCMT3252LF 9,53 3/8 11,63 .458 0,8 1/32 • DCMT11T312LF DCMT3253LF 9,53 3/8 11,63 .458 1,2 3/64 • DCMT150404LF DCMT431LF 12,70 1/2 15,50 .610 0,4 1/64 • DCMT150408LF DCMT432LF 12,70 1/2 15,50 .610 0,8 1/32 • 30
