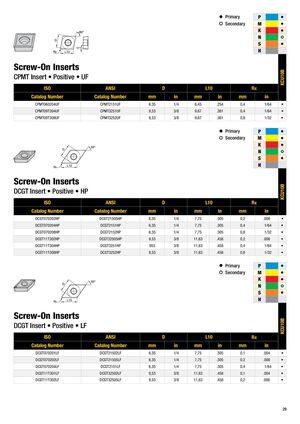

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 29

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CPMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CPMT060204UF CPMT2151UF 6,35 1/4 6,45 .254 0,4 1/64 • CPMT09T304UF CPMT3251UF 9,53 3/8 9,67 .381 0,4 1/64 • CPMT09T308UF CPMT3252UF 9,53 3/8 9,67 .381 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DCGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCGT070202HP DCGT21505HP 6,35 1/4 7,75 .305 0,2 .008 • DCGT070204HP DCGT2151HP 6,35 1/4 7,75 .305 0,4 1/64 • DCGT070208HP DCGT2152HP 6,35 1/4 7,75 .305 0,8 1/32 • DCGT11T302HP DCGT32505HP 9,53 3/8 11,63 .458 0,2 .008 • DCGT11T304HP DCGT3251HP 953 3/8 11,63 .458 0,4 1/64 • DCGT11T308HP DCGT3252HP 9,53 3/8 11,63 .458 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B DCGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in DCGT070201LF DCGT21502LF 6,35 1/4 7,75 .305 0,1 .004 • DCGT070202LF DCGT21505LF 6,35 1/4 7,75 .305 0,2 .008 • DCGT070204LF DCGT2151LF 6,35 1/4 7,75 .305 0,4 1/64 • DCGT11T301LF DCGT32502LF 9,53 3/8 11,63 .458 0,1 .004 • DCGT11T302LF DCGT32505LF 9,53 3/8 11,63 .458 0,2 .008 • 29
