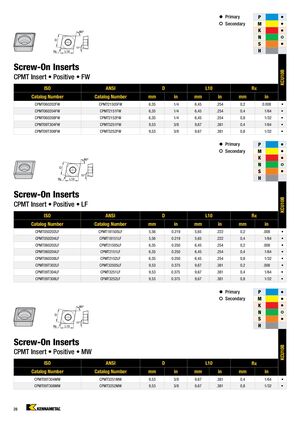

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 28

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CPMT Insert • Positive • FW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CPMT060202FW CPMT21505FW 6,35 1/4 6,45 .254 0,2 0.008 • CPMT060204FW CPMT2151FW 6,35 1/4 6,45 .254 0,4 1/64 • CPMT060208FW CPMT2152FW 6,35 1/4 6,45 .254 0,8 1/32 • CPMT09T304FW CPMT3251FW 9,53 3/8 9,67 .381 0,4 1/64 • CPMT09T308FW CPMT3252FW 9,53 3/8 9,67 .381 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CPMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CPMT050202LF CPMT181505LF 5,56 0.219 5,65 .222 0,2 .008 • CPMT050204LF CPMT18151LF 5,56 0.219 5,65 .222 0,4 1/64 • CPMT060202LF CPMT21505LF 6,35 0.250 6,45 .254 0,2 .008 • CPMT060204LF CPMT2151LF 6,35 0.250 6,45 .254 0,4 1/64 • CPMT060208LF CPMT2152LF 6,35 0.250 6,45 .254 0,8 1/32 • CPMT09T302LF CPMT32505LF 9,53 0.375 9,67 .381 0,2 .008 • CPMT09T304LF CPMT3251LF 9,53 0.375 9,67 .381 0,4 1/64 • CPMT09T308LF CPMT3252LF 9,53 0.375 9,67 .381 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CPMT Insert • Positive • MW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CPMT09T304MW CPMT3251MW 9,53 3/8 9,67 .381 0,4 1/64 • CPMT09T308MW CPMT3252MW 9,53 3/8 9,67 .381 0,8 1/32 • 28
