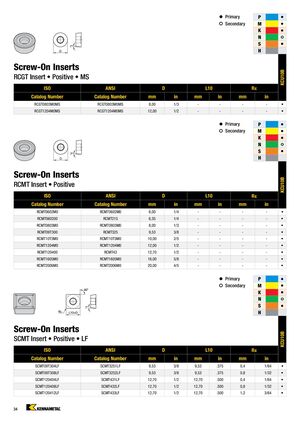

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 34

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B RCGT Insert • Positive • MS ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in RCGT0803M0MS RCGT0803M0MS 8,00 1/3 - - - - • RCGT1204M0MS RCGT1204M0MS 12,00 1/2 - - - - • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B RCMT Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in RCMT0602M0 RCMT0602M0 6,00 1/4 - - - - • RCMT060200 RCMT215 6,35 1/4 - - - - • RCMT0803M0 RCMT0803M0 8,00 1/3 - - - - • RCMT09T300 RCMT325 9,53 3/8 - - - - • RCMT10T3M0 RCMT10T3M0 10,00 2/5 - - - - • RCMT1204M0 RCMT1204M0 12,00 1/2 - - - - • RCMT120400 RCMT43 12,70 1/2 - - - - • RCMT1605M0 RCMT1605M0 16,00 5/8 - - - - • RCMT2006M0 RCMT2006M0 20,00 4/5 - - - - • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B SCMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in SCMT09T304LF SCMT3251LF 9,53 3/8 9,53 .375 0,4 1/64 • SCMT09T308LF SCMT3252LF 9,53 3/8 9,53 .375 0,8 1/32 • SCMT120404LF SCMT431LF 12,70 1/2 12,70 .500 0,4 1/64 • SCMT120408LF SCMT432LF 12,70 1/2 12,70 .500 0,8 1/32 • SCMT120412LF SCMT433LF 12,70 1/2 12,70 .500 1,2 3/64 • 34
