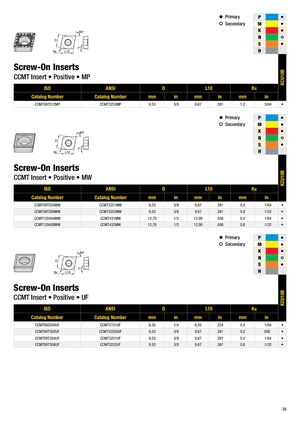

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 25

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCMT Insert • Positive • MP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCMT09T312MP CCMT3253MP 9,53 3/8 9,67 .381 1,2 3/64 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCMT Insert • Positive • MW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCMT09T304MW CCMT3251MW 9,53 3/8 9,67 .381 0,4 1/64 • CCMT09T308MW CCMT3252MW 9,53 3/8 9,67 .381 0,8 1/32 • CCMT120404MW CCMT431MW 12,70 1/2 12,90 .508 0,4 1/64 • CCMT120408MW CCMT432MW 12,70 1/2 12,90 .508 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCMT Insert • Positive • UF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCMT060204UF CCMT2151UF 6,35 1/4 6,45 .254 0,4 1/64 • CCMT09T302UF CCMT32505UF 9,53 3/8 9,67 .381 0,2 .008 • CCMT09T304UF CCMT3251UF 9,53 3/8 9,67 .381 0,4 1/64 • CCMT09T308UF CCMT3252UF 9,53 3/8 9,67 .381 0,8 1/32 • 25
