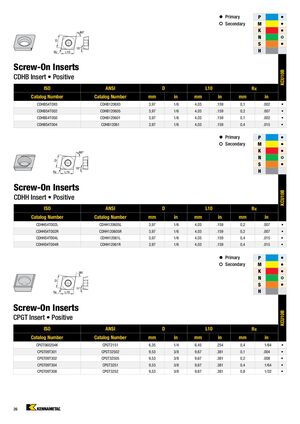

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 26

• Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CDHB Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CDHBS4T0X0 CDHB1206X0 3,97 1/6 4,03 .159 0,1 .002 • CDHBS4T002 CDHB120605 3,97 1/6 4,03 .159 0,2 .007 • CDHBS4T0S0 CDHB120601 3,97 1/6 4,03 .159 0,1 .002 • CDHBS4T004 CDHB12061 3,97 1/6 4,03 .159 0,4 .015 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CDHH Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CDHHS4T002L CDHH120605L 3,97 1/6 4,03 .159 0,2 .007 • CDHHS4T002R CDHH120605R 3,97 1/6 4,03 .159 0,2 .007 • CDHHS4T004L CDHH12061L 3,97 1/6 4,03 .159 0,4 .015 • CDHHS4T004R CDHH12061R 3,97 1/6 4,03 .159 0,4 .015 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CPGT Insert • Positive ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CPGT060204K CPGT2151 6,35 1/4 6,45 .254 0,4 1/64 • CPGT09T301 CPGT32502 9,53 3/8 9,67 .381 0,1 .004 • CPGT09T302 CPGT32505 9,53 3/8 9,67 .381 0,2 .008 • CPGT09T304 CPGT3251 9,53 3/8 9,67 .381 0,4 1/64 • CPGT09T308 CPGT3252 9,53 3/8 9,67 .381 0,8 1/32 • 26
