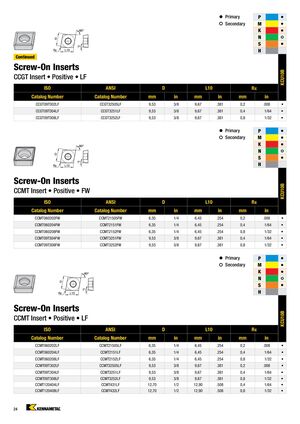

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 24

• Primary P • • Secondary M • K • N • S • H Continued Screw-On Inserts KCU10B CCGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCGT09T302LF CCGT32505LF 9,53 3/8 9,67 .381 0,2 .008 • CCGT09T304LF CCGT3251LF 9,53 3/8 9,67 .381 0,4 1/64 • CCGT09T308LF CCGT3252LF 9,53 3/8 9,67 .381 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCMT Insert • Positive • FW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCMT060202FW CCMT21505FW 6,35 1/4 6,45 .254 0,2 .008 • CCMT060204FW CCMT2151FW 6,35 1/4 6,45 .254 0,4 1/64 • CCMT060208FW CCMT2152FW 6,35 1/4 6,45 .254 0,8 1/32 • CCMT09T304FW CCMT3251FW 9,53 3/8 9,67 .381 0,4 1/64 • CCMT09T308FW CCMT3252FW 9,53 3/8 9,67 .381 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCMT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCMT060202LF CCMT21505LF 6,35 1/4 6,45 .254 0,2 .008 • CCMT060204LF CCMT2151LF 6,35 1/4 6,45 .254 0,4 1/64 • CCMT060208LF CCMT2152LF 6,35 1/4 6,45 .254 0,8 1/32 • CCMT09T302LF CCMT32505LF 9,53 3/8 9,67 .381 0,2 .008 • CCMT09T304LF CCMT3251LF 9,53 3/8 9,67 .381 0,4 1/64 • CCMT09T308LF CCMT3252LF 9,53 3/8 9,67 .381 0,8 1/32 • CCMT120404LF CCMT431LF 12,70 1/2 12,90 .508 0,4 1/64 • CCMT120408LF CCMT432LF 12,70 1/2 12,90 .508 0,8 1/32 • 24
