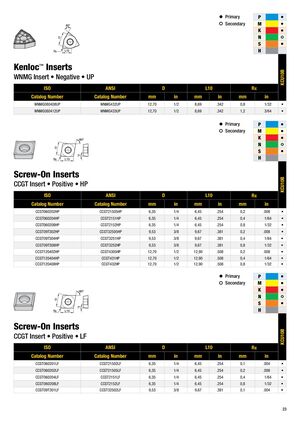

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 23

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • UP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG080408UP WNMG432UP 12,70 1/2 8,69 .342 0,8 1/32 • WNMG080412UP WNMG433UP 12,70 1/2 8,69 .342 1,2 3/64 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCGT Insert • Positive • HP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCGT060202HP CCGT21505HP 6,35 1/4 6,45 .254 0,2 .008 • CCGT060204HP CCGT2151HP 6,35 1/4 6,45 .254 0,4 1/64 • CCGT060208HP CCGT2152HP 6,35 1/4 6,45 .254 0,8 1/32 • CCGT09T302HP CCGT32505HP 9,53 3/8 9,67 .381 0,2 .008 • CCGT09T304HP CCGT3251HP 9,53 3/8 9,67 .381 0,4 1/64 • CCGT09T308HP CCGT3252HP 9,53 3/8 9,67 .381 0,8 1/32 • CCGT120402HP CCGT4305HP 12,70 1/2 12,90 .508 0,2 .008 • CCGT120404HP CCGT431HP 12,70 1/2 12,90 .508 0,4 1/64 • CCGT120408HP CCGT432HP 12,70 1/2 12,90 .508 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Screw-On Inserts KCU10B CCGT Insert • Positive • LF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in CCGT060201LF CCGT21502LF 6,35 1/4 6,45 .254 0,1 .004 • CCGT060202LF CCGT21505LF 6,35 1/4 6,45 .254 0,2 .008 • CCGT060204LF CCGT2151LF 6,35 1/4 6,45 .254 0,4 1/64 • CCGT060208LF CCGT2152LF 6,35 1/4 6,45 .254 0,8 1/32 • CCGT09T301LF CCGT32502LF 9,53 3/8 9,67 .381 0,1 .004 • 23
