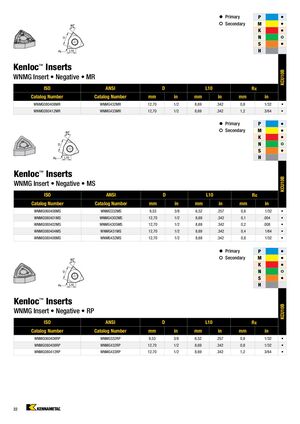

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • MR ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG080408MR WNMG432MR 12,70 1/2 8,69 .342 0,8 1/32 • WNMG080412MR WNMG433MR 12,70 1/2 8,69 .342 1,2 3/64 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • MS ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG060408MS WNMG332MS 9,53 3/8 6,52 .257 0,8 1/32 • WNMG080401MS WNMG4302MS 12,70 1/2 8,69 .342 0,1 .004 • WNMG080402MS WNMG4305MS 12,70 1/2 8,69 .342 0,2 .008 • WNMG080404MS WNMG431MS 12,70 1/2 8,69 .342 0,4 1/64 • WNMG080408MS WNMG432MS 12,70 1/2 8,69 .342 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • RP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG060408RP WNMG332RP 9,53 3/8 6,52 .257 0,8 1/32 • WNMG080408RP WNMG432RP 12,70 1/2 8,69 .342 0,8 1/32 • WNMG080412RP WNMG433RP 12,70 1/2 8,69 .342 1,2 3/64 • 22
