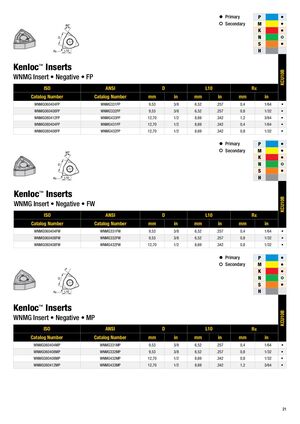

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • FP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG060404FP WNMG331FP 9,53 3/8 6,52 .257 0,4 1/64 • WNMG060408FP WNMG332FP 9,53 3/8 6,52 .257 0,8 1/32 • WNMG080412FP WNMG433FP 12,70 1/2 8,69 .342 1,2 3/64 • WNMG080404FP WNMG431FP 12,70 1/2 8,69 .342 0,4 1/64 • WNMG080408FP WNMG432FP 12,70 1/2 8,69 .342 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • FW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG060404FW WNMG331FW 9,53 3/8 6,52 .257 0,4 1/64 • WNMG060408FW WNMG332FW 9,53 3/8 6,52 .257 0,8 1/32 • WNMG080408FW WNMG432FW 12,70 1/2 8,69 .342 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • MP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG060404MP WNMG331MP 9,53 3/8 6,52 .257 0,4 1/64 • WNMG060408MP WNMG332MP 9,53 3/8 6,52 .257 0,8 1/32 • WNMG080408MP WNMG432MP 12,70 1/2 8,69 .342 0,8 1/32 • WNMG080412MP WNMG433MP 12,70 1/2 8,69 .342 1,2 3/64 • 21
