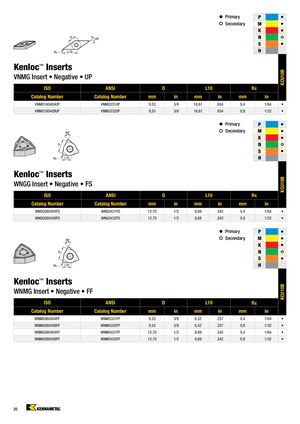

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B VNMG Insert • Negative • UP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNMG160404UP VNMG331UP 9,53 3/8 16,61 .654 0,4 1/64 • VNMG160408UP VNMG332UP 9,53 3/8 16,61 .654 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNGG Insert • Negative • FS ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNGG080404FS WNGG431FS 12,70 1/2 8,69 .342 0,4 1/64 • WNGG080408FS WNGG432FS 12,70 1/2 8,69 .342 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B WNMG Insert • Negative • FF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in WNMG060404FF WNMG331FF 9,53 3/8 6,52 .257 0,4 1/64 • WNMG060408FF WNMG332FF 9,53 3/8 6,52 .257 0,8 1/32 • WNMG080404FF WNMG431FF 12,70 1/2 8,69 .342 0,4 1/64 • WNMG080408FF WNMG432FF 12,70 1/2 8,69 .342 0,8 1/32 • 20
