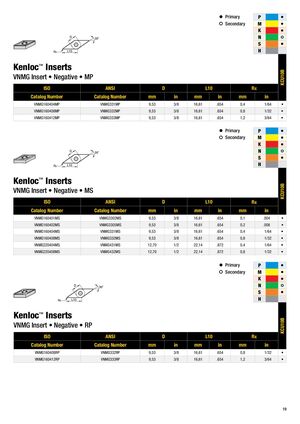

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B VNMG Insert • Negative • MP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNMG160404MP VNMG331MP 9,53 3/8 16,61 .654 0,4 1/64 • VNMG160408MP VNMG332MP 9,53 3/8 16,61 .654 0,8 1/32 • VNMG160412MP VNMG333MP 9,53 3/8 16,61 .654 1,2 3/64 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B VNMG Insert • Negative • MS ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNMG160401MS VNMG3302MS 9,53 3/8 16,61 .654 0,1 .004 • VNMG160402MS VNMG3305MS 9,53 3/8 16,61 .654 0,2 .008 • VNMG160404MS VNMG331MS 9,53 3/8 16,61 .654 0,4 1/64 • VNMG160408MS VNMG332MS 9,53 3/8 16,61 .654 0,8 1/32 • VNMG220404MS VNMG431MS 12,70 1/2 22,14 .872 0,4 1/64 • VNMG220408MS VNMG432MS 12,70 1/2 22,14 .872 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B VNMG Insert • Negative • RP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNMG160408RP VNMG332RP 9,53 3/8 16,61 .654 0,8 1/32 • VNMG160412RP VNMG333RP 9,53 3/8 16,61 .654 1,2 3/64 • 19
