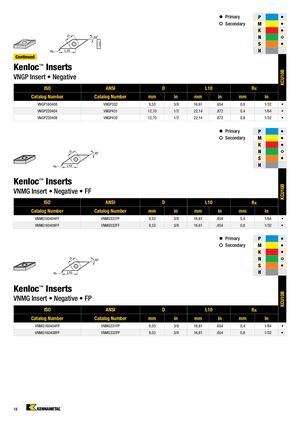

• Primary P • • Secondary M • K • N • S • H Continued Kenloc™ Inserts KCU10B VNGP Insert • Negative ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNGP160408 VNGP332 9,53 3/8 16,61 .654 0,8 1/32 • VNGP220404 VNGP431 12,70 1/2 22,14 .872 0,4 1/64 • VNGP220408 VNGP432 12,70 1/2 22,14 .872 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B VNMG Insert • Negative • FF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNMG160404FF VNMG331FF 9,53 3/8 16,61 .654 0,4 1/64 • VNMG160408FF VNMG332FF 9,53 3/8 16,61 .654 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B VNMG Insert • Negative • FP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in VNMG160404FP VNMG331FP 9,53 3/8 16,61 .654 0,4 1/64 • VNMG160408FP VNMG332FP 9,53 3/8 16,61 .654 0,8 1/32 • 18
