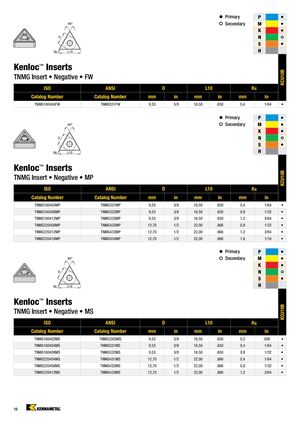

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 16

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B TNMG Insert • Negative • FW ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TNMG160404FW TNMG331FW 9,53 3/8 16,50 .650 0,4 1/64 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B TNMG Insert • Negative • MP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TNMG160404MP TNMG331MP 9,53 3/8 16,50 .650 0,4 1/64 • TNMG160408MP TNMG332MP 9,53 3/8 16,50 .650 0,8 1/32 • TNMG160412MP TNMG333MP 9,53 3/8 16,50 .650 1,2 3/64 • TNMG220408MP TNMG432MP 12,70 1/2 22,00 .866 0,8 1/32 • TNMG220412MP TNMG433MP 12,70 1/2 22,00 .866 1,2 3/64 • TNMG220416MP TNMG434MP 12,70 1/2 22,00 .866 1,6 1/16 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B TNMG Insert • Negative • MS ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TNMG160402MS TNMG3305MS 9,53 3/8 16,50 .650 0,2 .008 • TNMG160404MS TNMG331MS 9,53 3/8 16,50 .650 0,4 1/64 • TNMG160408MS TNMG332MS 9,53 3/8 16,50 .650 0,8 1/32 • TNMG220404MS TNMG431MS 12,70 1/2 22,00 .866 0,4 1/64 • TNMG220408MS TNMG432MS 12,70 1/2 22,00 .866 0,8 1/32 • TNMG220412MS TNMG433MS 12,70 1/2 22,00 .866 1,2 3/64 • 16
