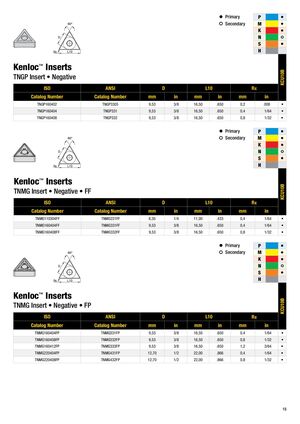

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 15

• Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B TNGP Insert • Negative ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TNGP160402 TNGP3305 9,53 3/8 16,50 .650 0,2 .008 • TNGP160404 TNGP331 9,53 3/8 16,50 .650 0,4 1/64 • TNGP160408 TNGP332 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B TNMG Insert • Negative • FF ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TNMG110304FF TNMG221FF 6,35 1/4 11,00 .433 0,4 1/64 • TNMG160404FF TNMG331FF 9,53 3/8 16,50 .650 0,4 1/64 • TNMG160408FF TNMG332FF 9,53 3/8 16,50 .650 0,8 1/32 • • Primary P • • Secondary M • K • N • S • H Kenloc™ Inserts KCU10B TNMG Insert • Negative • FP ISO ANSI D L10 Rε Catalog Number Catalog Number mm in mm in mm in TNMG160404FP TNMG331FP 9,53 3/8 16,50 .650 0,4 1/64 • TNMG160408FP TNMG332FP 9,53 3/8 16,50 .650 0,8 1/32 • TNMG160412FP TNMG333FP 9,53 3/8 16,50 .650 1,2 3/64 • TNMG220404FP TNMG431FP 12,70 1/2 22,00 .866 0,4 1/64 • TNMG220408FP TNMG432FP 12,70 1/2 22,00 .866 0,8 1/32 • 15
