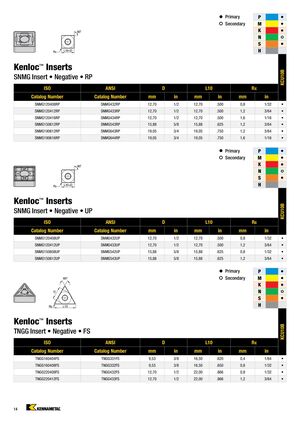

Kenloc™ Inserts
SNMG Insert Negative RP
N
S
H
| ISO | ANSI | D | L1 | 0 | R | ε | ||
| Catalog Number | Catalog Number | mm | in | mm | in | mm | in | |
| SNMG120408RP | SNMG432RP | 12,70 | 1/2 | 12,70 | .500 | 0,8 | 1/32 | • |
| SNMG120412RP | SNMG433RP | 12,70 | 1/2 | 12,70 | .500 | 1,2 | 3/64 | • |
| SNMG120416RP | SNMG434RP | 12,70 | 1/2 | 12,70 | .500 | 1,6 | 1/16 | • |
| SNMG150612RP | SNMG543RP | 15,88 | 5/8 | 15,88 | .625 | 1,2 | 3/64 | • |
| SNMG190612RP | SNMG643RP | 19,05 | 3/4 | 19,05 | .750 | 1,2 | 3/64 | • |
| SNMG190616RP | SNMG644RP | 19,05 | 3/4 | 19,05 | .750 | 1,6 | 1/16 | • |
| • Primary | P | • |
| • Secondary | M | • |
| K | • | |
| N | • | |
| S | • | |
| H |
Kenloc™ Inserts
SNMG Insert Negative UP
| ISO | ANSI | D | L1 | 0 | R | ε | ||
| Catalog Number | Catalog Number | mm | in | mm | in | mm | in | |
| SNMG120408UP | SNMG432UP | 12,70 | 1/2 | 12,70 | .500 | 0,8 | 1/32 | • |
| SNMG120412UP | SNMG433UP | 12,70 | 1/2 | 12,70 | .500 | 1,2 | 3/64 | • |
| SNMG150608UP | SNMG542UP | 15,88 | 5/8 | 15,88 | .625 | 0,8 | 1/32 | • |
| SNMG150612UP | SNMG543UP | 15,88 | 5/8 | 15,88 | .625 | 1,2 | 3/64 | • |
| • Primary | P | • |
| • Secondary | M | • |
| K | • | |
| N | • | |
| S | • | |
| H |
Kenloc™ Inserts
TNGG Insert Negative FS
| ISO | ANSI | D | L1 | 0 | R | ε | |
| Catalog Number | Catalog Number | mm | in | mm | in | mm | in |
| TNGG160404FS | TNGG331FS | 9,53 | 3/8 | 16,50 | .620 | 0,4 | 1/64 • |
| TNGG160408FS | TNGG332FS | 9,53 | 3/8 | 16,50 | .650 | 0,8 | 1/32 • |
| TNGG220408FS | TNGG432FS | 12,70 | 1/2 | 22,00 | .866 | 0,8 | 1/32 • |
| TNGG220412FS | TNGG433FS | 12,70 | 1/2 | 22,00 | .866 | 1,2 | 3/64 • |
