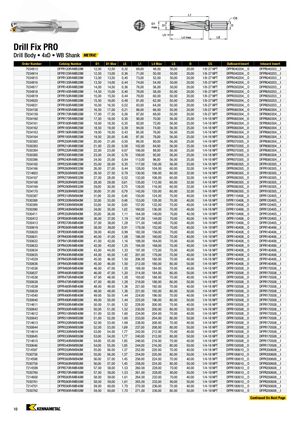

Drill Fix PRO
Корпус сверла • 4xD • Хвостовик WB • Метрический
| Номер заказа | Номер каталога | D1 | D1 Max | L5 | L1 | L4 Max | LS | D | CS | Внешняя вставка | Внутренняя вставка |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7034813 | DFPR120R4WB20M | 12,00 | 12,50 | 0,32 | 69,00 | 48,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR040204__O | DFPR040203__I |
| 7034814 | DFPR125R4WB20M | 12,50 | 13,00 | 0,36 | 71,00 | 50,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR040204__O | DFPR040203__I |
| 7034815 | DFPR130R4WB20M | 13,00 | 13,50 | 0,40 | 73,00 | 52,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR040204__O | DFPR040203__I |
| 7034816 | DFPR135R4WB20M | 13,50 | 14,00 | 0,44 | 74,00 | 54,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR040204__O | DFPR040203__I |
| 7034817 | DFPR140R4WB20M | 14,00 | 14,50 | 0,36 | 76,00 | 56,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR050204__O | DFPR050203__I |
| 7034818 | DFPR145R4WB20M | 14,50 | 15,00 | 0,40 | 78,00 | 58,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR050204__O | DFPR050203__I |
| 7034819 | DFPR150R4WB20M | 15,00 | 15,50 | 0,44 | 79,00 | 60,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR050204__O | DFPR050203__I |
| 7034820 | DFPR155R4WB20M | 15,50 | 16,00 | 0,48 | 81,00 | 62,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR050204__O | DFPR050203__I |
| 7034831 | DFPR160R4WB20M | 16,00 | 16,50 | 0,52 | 83,00 | 64,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR050204__O | DFPR050203__I |
| 7034158 | DFPR165R4WB20M | 16,50 | 17,00 | 0,21 | 86,00 | 66,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR060304__O | DFPR060304__I |
| 7034159 | DFPR170R4WB20M | 17,00 | 17,50 | 0,26 | 87,00 | 68,00 | 50,00 | 20,00 | 1/8-27 NPT | DFPR060304__O | DFPR060304__I |
| 7034160 | DFPR175R4WB25M | 17,50 | 18,00 | 0,30 | 90,00 | 70,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR060304__O | DFPR060304__I |
| 7034161 | DFPR180R4WB25M | 18,00 | 18,50 | 0,35 | 92,00 | 72,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR060304__O | DFPR060304__I |
| 7034162 | DFPR185R4WB25M | 18,50 | 19,00 | 0,39 | 94,00 | 74,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR060304__O | DFPR060304__I |
| 7034163 | DFPR190R4WB25M | 19,00 | 19,50 | 0,43 | 95,00 | 76,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR060304__O | DFPR060304__I |
| 7034164 | DFPR195R4WB25M | 19,50 | 20,00 | 0,48 | 97,00 | 78,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR060304__O | DFPR060304__I |
| 7030382 | DFPR200R4WB25M | 20,00 | 21,00 | 0,50 | 99,00 | 80,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR070305__O | DFPR080304__I |
| 7030383 | DFPR210R4WB25M | 21,00 | 22,00 | 0,58 | 102,00 | 84,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR070305__O | DFPR080304__I |
| 7030384 | DFPR220R4WB25M | 22,00 | 23,00 | 0,67 | 106,00 | 88,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR070305__O | DFPR080304__I |
| 7030385 | DFPR230R4WB25M | 23,00 | 24,00 | 0,76 | 109,00 | 92,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR070305__O | DFPR080304__I |
| 7030386 | DFPR240R4WB25M | 24,00 | 25,00 | 0,84 | 113,00 | 96,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR070305__O | DFPR080304__I |
| 7034165 | DFPR250R4WB25M | 25,00 | 26,00 | 0,35 | 117,00 | 100,00 | 56,00 | 25,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7034166 | DFPR260R4WB32M | 26,00 | 27,00 | 0,44 | 128,00 | 104,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7214603 | DFPR265R4WB32M | 26,50 | 27,50 | 0,78 | 130,00 | 106,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7034167 | DFPR270R4WB32M | 27,00 | 28,00 | 0,52 | 132,00 | 108,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7034168 | DFPR280R4WB32M | 28,00 | 29,00 | 0,61 | 135,00 | 112,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7034169 | DFPR290R4WB32M | 29,00 | 30,00 | 0,70 | 139,00 | 116,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7034170 | DFPR300R4WB32M | 30,00 | 31,00 | 0,79 | 142,00 | 120,00 | 60,00 | 32,00 | 1/4-18 NPT | DFPR090305__O | DFPR100305__I |
| 7030387 | DFPR310R4WB40M | 31,00 | 32,00 | 0,40 | 150,00 | 124,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030388 | DFPR320R4WB40M | 32,00 | 33,00 | 0,48 | 153,00 | 128,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030389 | DFPR330R4WB40M | 33,00 | 34,00 | 0,93 | 157,00 | 132,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030390 | DFPR340R4WB40M | 34,00 | 35,00 | 1,02 | 160,00 | 136,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030411 | DFPR350R4WB40M | 35,00 | 36,00 | 1,11 | 164,00 | 140,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030412 | DFPR360R4WB40M | 36,00 | 37,00 | 1,19 | 167,00 | 144,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030413 | DFPR370R4WB40M | 37,00 | 38,00 | 1,28 | 171,00 | 148,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR110406__O | DFPR120405__I |
| 7030619 | DFPR380R4WB40M | 38,00 | 39,00 | 0,91 | 179,00 | 152,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030620 | DFPR390R4WB40M | 39,00 | 40,00 | 0,99 | 182,00 | 156,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030631 | DFPR400R4WB40M | 40,00 | 41,00 | 1,08 | 186,00 | 160,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030632 | DFPR410R4WB40M | 41,00 | 42,00 | 1,16 | 189,00 | 164,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030633 | DFPR420R4WB40M | 42,00 | 43,00 | 1,25 | 194,00 | 168,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030634 | DFPR430R4WB40M | 43,00 | 44,00 | 1,33 | 197,00 | 172,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030635 | DFPR440R4WB40M | 44,00 | 45,00 | 1,42 | 201,00 | 176,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7214529 | DFPR450R4WB40M | 45,00 | 46,00 | 1,50 | 206,00 | 180,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7030636 | DFPR450R4WB50M | 45,00 | 46,00 | 1,50 | 212,00 | 180,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR140408__O | DFPR140406__I |
| 7214536 | DFPR460R4WB40M | 46,00 | 47,00 | 1,20 | 189,00 | 184,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030637 | DFPR460R4WB50M | 46,00 | 47,00 | 1,20 | 214,00 | 184,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214538 | DFPR470R4WB40M | 47,00 | 48,00 | 1,28 | 193,00 | 188,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030638 | DFPR470R4WB50M | 47,00 | 48,00 | 1,28 | 218,00 | 188,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214539 | DFPR480R4WB40M | 48,00 | 49,00 | 1,36 | 221,00 | 192,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030639 | DFPR480R4WB50M | 48,00 | 49,00 | 1,36 | 221,00 | 192,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214540 | DFPR490R4WB40M | 49,00 | 50,00 | 1,44 | 224,00 | 196,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030640 | DFPR490R4WB50M | 49,00 | 50,00 | 1,44 | 225,00 | 196,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214611 | DFPR500R4WB40M | 50,00 | 51,00 | 1,52 | 228,00 | 200,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030642 | DFPR500R4WB50M | 50,00 | 51,00 | 1,52 | 230,00 | 200,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214612 | DFPR510R4WB40M | 51,00 | 52,00 | 1,60 | 234,00 | 204,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030643 | DFPR510R4WB50M | 51,00 | 52,00 | 1,60 | 233,00 | 204,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214613 | DFPR520R4WB40M | 52,00 | 53,00 | 1,69 | 238,00 | 208,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030644 | DFPR520R4WB50M | 52,00 | 53,00 | 1,69 | 237,00 | 208,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214614 | DFPR530R4WB40M | 53,00 | 54,00 | 1,77 | 242,00 | 212,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030645 | DFPR530R4WB50M | 53,00 | 54,00 | 1,77 | 240,00 | 212,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214615 | DFPR540R4WB40M | 54,00 | 55,00 | 1,85 | 246,00 | 216,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7030646 | DFPR540R4WB50M | 54,00 | 55,00 | 1,85 | 244,00 | 216,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR150508__O | DFPR170508__I |
| 7214597 | DFPR550R4WB40M | 55,00 | 56,00 | 1,37 | 252,00 | 220,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030758 | DFPR550R4WB50M | 55,00 | 56,00 | 1,37 | 254,00 | 220,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214598 | DFPR560R4WB40M | 56,00 | 57,00 | 1,45 | 256,00 | 224,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030759 | DFPR560R4WB50M | 56,00 | 57,00 | 1,45 | 258,00 | 224,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214599 | DFPR570R4WB40M | 57,00 | 58,00 | 1,53 | 260,00 | 228,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030760 | DFPR570R4WB50M | 57,00 | 58,00 | 1,53 | 261,00 | 228,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214600 | DFPR580R4WB40M | 58,00 | 59,00 | 1,61 | 264,00 | 232,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030761 | DFPR580R4WB50M | 58,00 | 59,00 | 1,61 | 265,00 | 232,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7214701 | DFPR590R4WB40M | 59,00 | 60,00 | 1,70 | 270,00 | 236,00 | 70,00 | 40,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
| 7030762 | DFPR590R4WB50M | 59,00 | 60,00 | 1,70 | 271,00 | 236,00 | 80,00 | 50,00 | 1/4-18 NPT | DFPR180610__O | DFPR200608__I |
Продолжение на следующей странице
