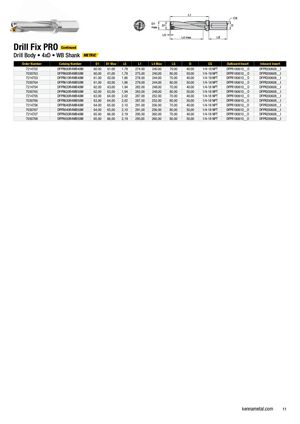

Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024 - страница 11

Drill Fix PRO Continued Drill Body • 4xD • WB Shank METRIC Order Number Catalog Number D1 D1 Max L5 L1 L4 Max LS D CS Outboard Insert Inboard Insert 7214702 DFPR600R4WB40M 60.00 61.00 1.78 274.00 240.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030763 DFPR600R4WB50M 60,00 61,00 1,78 275,00 240,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214703 DFPR610R4WB40M 61.00 62.00 1.86 278.00 244.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030764 DFPR610R4WB50M 61,00 62,00 1,86 279,00 244,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214704 DFPR620R4WB40M 62.00 63.00 1.94 282.00 248.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030765 DFPR620R4WB50M 62,00 63,00 1,94 283,00 248,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214705 DFPR630R4WB40M 63.00 64.00 2.02 287.00 252.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030766 DFPR630R4WB50M 63,00 64,00 2,02 287,00 252,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214706 DFPR640R4WB40M 64.00 65.00 2.10 291.00 256.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030767 DFPR640R4WB50M 64,00 65,00 2,10 291,00 256,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214707 DFPR650R4WB40M 65.00 66.00 2.19 295.00 260.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030768 DFPR650R4WB50M 65,00 66,00 2,19 295,00 260,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I kennametal.com 11
