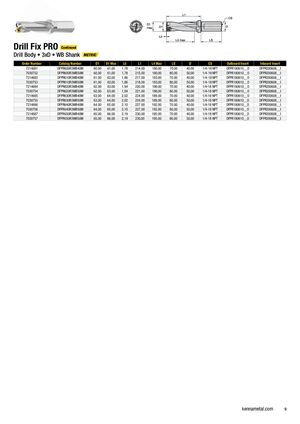

Сверла со сменными пластинами линейки Drill Fix PRO Kennametal 2024 - страница 9

Drill Fix PRO Continued Drill Body • 3xD • WB Shank METRIC Order Number Catalog Number D1 D1 Max L5 L1 L4 Max LS D CS Outboard Insert Inboard Insert 7214681 DFPR600R3WB40M 60.00 61.00 1.78 214.00 180.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030752 DFPR600R3WB50M 60,00 61,00 1,78 215,00 180,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214683 DFPR610R3WB40M 61.00 62.00 1.86 217.00 183.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030753 DFPR610R3WB50M 61,00 62,00 1,86 218,00 183,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214684 DFPR620R3WB40M 62.00 63.00 1.94 220.00 186.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030754 DFPR620R3WB50M 62,00 63,00 1,94 221,00 186,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214685 DFPR630R3WB40M 63.00 64.00 2.02 224.00 189.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030755 DFPR630R3WB50M 63,00 64,00 2,02 224,00 189,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214686 DFPR640R3WB40M 64.00 65.00 2.10 227.00 192.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030756 DFPR640R3WB50M 64,00 65,00 2,10 227,00 192,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I 7214687 DFPR650R3WB40M 65.00 66.00 2.19 230.00 195.00 70.00 40.00 1/4-18 NPT DFPR180610__O DFPR200608__I 7030757 DFPR650R3WB50M 65,00 66,00 2,19 230,00 195,00 80,00 50,00 1/4-18 NPT DFPR180610__O DFPR200608__I kennametal.com 9
