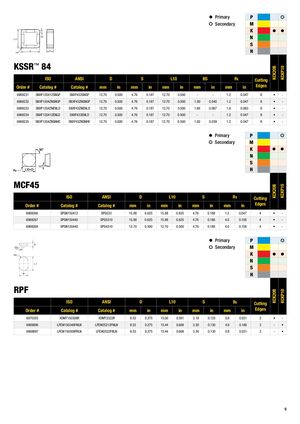

• Primary P • • Secondary M K • • L10 BS N S R D S H KSSR™ 84 KCK20B KCKP10 ISO ANSI D S L10 BS Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in mm in Edges 6969231 SNXF120412SNGP SNXF433SNGP 12.70 0.500 4.76 0.187 12.70 0.500 - - 1.2 0.047 8 • - 6969232 SNXF1204ZNSNGP SNXF43ZNSNGP 12.70 0.500 4.76 0.187 12.70 0.500 1.00 0.040 1.2 0.047 8 • - 6969233 SNXF1204ZNENLD SNXF43ZNENLD 12.70 0.500 4.76 0.187 12.70 0.500 1.69 0.067 1.6 0.063 8 • - 6969234 SNXF120412ENLD SNXF433ENLD 12.70 0.500 4.76 0.187 12.70 0.500 - - 1.2 0.047 8 • - 6969235 SNXF1204ZNSNHE SNXF43ZNSNHE 12.70 0.500 4.76 0.187 12.70 0.500 1.00 0.039 1.2 0.047 8 • - • Primary P • • Secondary M K • • N S H MCF45 KCK20B KCKP10 ISO ANSI D L10 S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6969266 SPGN150412 SPG533 15.88 0.625 15.88 0.625 4.76 0.188 1.2 0.047 4 • - 6969267 SPGN150440 SPG5310 15.88 0.625 15.88 0.625 4.76 0.188 4.0 0.158 4 • - 6969268 SPGN120440 SPG4310 12.70 0.500 12.70 0.500 4.76 0.188 4.0 0.158 4 • - • Primary P • • Secondary M K • • N S H RPF KCK20B KCKP10 ISO ANSI D L10 S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6970355 XDMT150308R XDMT2322R 9.53 0.375 15.00 0.591 3.18 0.125 0.8 0.031 2 • - 6969896 LFEW150348FNLN LFEW25212FNLN 9.53 0.375 15.44 0.608 3.30 0.130 4.8 0.188 2 - • 6969897 LFEW150308FRLN LFEW2522FRLN 9.53 0.375 15.44 0.608 3.30 0.130 0.8 0.031 2 - • 9
