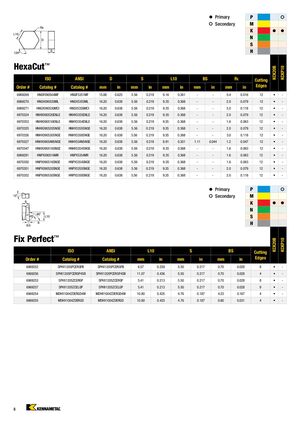

• Primary P • • Secondary M K • • N S H HexaCut™ KCK20B KCKP10 ISO ANSI D S L10 BS Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in mm in Edges 6969269 HNGF090504MF HNGF5351MF 15.88 0.625 5.56 0.219 9.16 0.361 - - 0.4 0.016 12 • - 6969270 HNGX090520ML HNGX5355ML 16.20 0.638 5.56 0.219 9.35 0.368 - - 2.0 0.079 12 • - 6969271 HNGX090530MCI HNGX5358MCI 16.20 0.638 5.56 0.219 9.35 0.368 - - 3.0 0.118 12 • - 6970324 HNHX090520ENLE HNHX5355ENLE 16.20 0.638 5.56 0.219 9.35 0.368 - - 2.0 0.079 12 • - 6970353 HNHX090516ENLE HNHX5354ENLE 16.20 0.638 5.56 0.219 9.35 0.368 - - 1.6 0.063 12 • - 6970325 HNHX090520SNGE HNHX5355SNGE 16.20 0.638 5.56 0.219 9.35 0.368 - - 2.0 0.079 12 • - 6970326 HNHX090530SNGE HNHX5358SNGE 16.20 0.638 5.56 0.219 9.35 0.368 - - 3.0 0.118 12 • - 6970327 HNHX0905ANSNGE HNHX53ANSNGE 16.20 0.638 5.56 0.219 8.91 0.351 1.11 0.044 1.2 0.047 12 • - 6970347 HNHX090516SNGE HNHX5354SNGE 16.20 0.638 5.56 0.219 9.35 0.368 - - 1.6 0.063 12 • - 6969281 HNPX090516MR HNPX5354MR 16.20 0.638 5.56 0.219 9.35 0.368 - - 1.6 0.063 12 • - 6970350 HNPX090516SNGE HNPX5354SNGE 16.20 0.638 5.56 0.219 9.35 0.368 - - 1.6 0.063 12 • - 6970351 HNPX090520SNGE HNPX5355SNGE 16.20 0.638 5.56 0.219 9.35 0.368 - - 2.0 0.079 12 • - 6970352 HNPX090530SNGE HNPX5358SNGE 16.20 0.638 5.56 0.219 9.35 0.368 - - 3.0 0.118 12 • - • Primary P • • Secondary M K • • N S BS H Fix Perfect™ KCK20B KCKP10 ISO ANSI L10 S BS Cutting Order # Catalog # Catalog # mm in mm in mm in Edges 6969252 SPHX1205PCERGPB SPHX1205PCERGPB 6.57 0.259 5.50 0.217 0.70 0.028 8 • - 6969256 SPHX1205PCERGP4SB SPHX1205PCERGP4SB 11.07 0.436 5.50 0.217 0.70 0.028 4 • - 6969253 SPHX1205ZCERGP SPHX1205ZCERGP 5.41 0.213 5.50 0.217 0.70 0.028 8 • - 6969257 SPHX1205ZCELGP SPHX1205ZCELGP 5.41 0.213 5.50 0.217 0.70 0.028 8 • - 6969254 MDHX1004ZDERGD4W MDHX1004ZDERGD4W 10.80 0.425 4.76 0.187 4.23 0.167 4 • - 6969255 MDHX1004ZDERGD MDHX1004ZDERGD 10.80 0.425 4.76 0.187 0.80 0.031 4 • - 8
