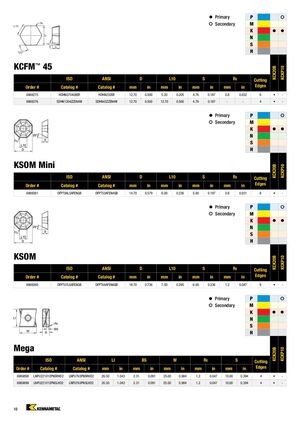

• Primary P • L10 Rε • Secondary M D K • • N 15° S S 120° H KCFM™ 45 KCK20B KCKP10 ISO ANSI D L10 S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6969275 HDHN070408ER HDHN232ER 12.70 0.500 5.20 0.205 4.76 0.187 0.8 0.032 6 • - 6969276 SDHN1204ZZEN4W SDHN43ZZEN4W 12.70 0.500 12.70 0.500 4.76 0.187 - - 4 • - • Primary P • • Secondary M K • • N Rε S H KSOM Mini KCK20B KCKP10 ISO ANSI D L10 S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6969261 OFPT06L5AFENGB OFPT53AFEN4GB 14.70 0.579 6.00 0.236 5.00 0.197 0.8 0.031 8 • - • Primary P • • Secondary M K • • N Rε S H KSOM KCK20B KCKP10 ISO ANSI D L10 S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6969260 OFPT07L6AFENGB OFPT64AFEN6GB 18.70 0.736 7.50 0.295 6.00 0.236 1.2 0.047 8 • - • Primary P • • Secondary M K • • N S H Mega KCK20B KCKP10 ISO ANSI LI BS W Rε S Cutting Order # Catalog # Catalog # mm in mm in mm in mm in mm in Edges 6969898 LNPU221012PNSRHD2 LNPU763PNSRHD2 26.50 1.043 2.31 0.091 25.00 0.984 1.2 0.047 10.00 0.394 4 • - 6969899 LNPU221012PNSLHD2 LNPU763PNSLHD2 26.50 1.043 2.31 0.091 25.00 0.984 1.2 0.047 10.00 0.394 4 • - 10
