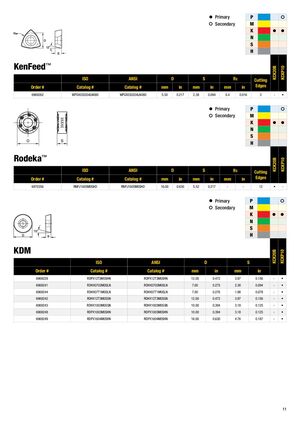

• Primary P • • Secondary M K • • N S H KenFeed™ KCK20B KCKP10 ISO ANSI D S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in Edges 6969262 WPGX030204LN080 WPGX030204LN080 5.50 0.217 2.38 0.094 0.4 0.016 3 - • • Primary P • • Secondary M K • • N S H Rodeka™ KCK20B KCKP10 ISO ANSI D S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in Edges 6970356 RNPJ1605M0SHD RNPJ1605M0SHD 16.00 0.630 5.52 0.217 - - 12 • - • Primary P • • Secondary M K • • N S H KDM KCK20B KCKP10 ISO ANSI D S Order # Catalog # Catalog # mm in mm in 6969229 RDPX12T3M0SHN RDPX12T3M0SHN 12.00 0.472 3.97 0.156 - • 6969241 RDHX0702M0SLN RDHX0702M0SLN 7.00 0.275 2.38 0.094 - • 6969244 RDHX07T1M0SLN RDHX07T1M0SLN 7.00 0.276 1.98 0.078 - • 6969242 RDHX12T3M0SGN RDHX12T3M0SGN 12.00 0.472 3.97 0.156 - • 6969243 RDHX1003M0SGN RDHX1003M0SGN 10.00 0.394 3.18 0.125 - • 6969248 RDPX1003M0SHN RDPX1003M0SHN 10.00 0.394 3.18 0.125 - • 6969249 RDPX1604M0SHN RDPX1604M0SHN 16.00 0.630 4.76 0.187 - • 11
