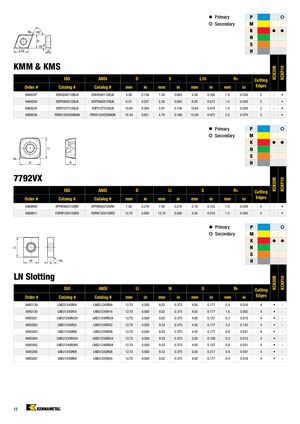

Сменные фрезерные пластины сплавов KCK20B и KCKP10 Kennametal 2024 - страница 12

• Primary P • • Secondary M K • • N S H KMM & KMS KCK20B KCKP10 ISO ANSI D S L10 Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6969247 XDHX040110ELN XDHX040110ELN 4.00 0.158 1.59 0.063 4.26 0.168 1.0 0.039 2 - • 6969250 XDPX060210SLN XDPX060210SLN 6.51 0.257 2.38 0.094 6.93 0.273 1.0 0.039 2 - • 6969245 XDPX10T310SLN XDPX10T310SLN 10.00 0.394 3.97 0.156 10.65 0.419 1.0 0.039 2 - • 6969246 PDHX120420SNGN PDHX120420SNGN 16.54 0.651 4.76 0.188 12.00 0.472 2.0 0.079 5 - • • Primary P • • Secondary M K • • N S H 7792VX KCK20B KCKP10 ISO ANSI D LI S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6969900 XPPW060310SRD XPPW060310SRD 7.00 0.276 7.00 0.276 3.18 0.125 1.0 0.039 4 - • 6969911 XDPW120515SRD XDPW120515SRD 12.70 0.500 12.70 0.500 5.56 0.219 1.5 0.058 4 - • • Primary P • • Secondary M K • • N S H LN Slotting KCK20B KCKP10 ISO ANSI LI W S Rε Cutting Order # Catalog # Catalog # mm in mm in mm in mm in Edges 6993129 LNEQ1245R04 LNEQ1245R04 12.70 0.500 9.52 0.375 4.50 0.177 0.4 0.016 4 • - 6993130 LNEU1245R16 LNEU1245R16 12.70 0.500 9.52 0.375 4.50 0.177 1.6 0.062 4 • - 6993261 LNEU1240R034 LNEU1240R034 12.70 0.500 9.52 0.375 4.00 0.157 0.3 0.012 4 • - 6993262 LNEU1245R32 LNEU1245R32 12.70 0.500 9.52 0.375 4.50 0.177 3.2 0.125 4 • - 6993263 LNEU1245R08 LNEU1245R08 12.70 0.500 9.52 0.375 4.50 0.177 0.8 0.031 4 • - 6993264 LNEU1235R034 LNEU1235R034 12.70 0.500 9.53 0.375 3.50 0.138 0.3 0.012 4 • - 6993265 LNEU1240R084 LNEU1240R084 12.70 0.500 9.53 0.375 4.00 0.157 0.8 0.031 4 • - 6993266 LNEU1255R08 LNEU1255R08 12.70 0.500 9.52 0.375 5.50 0.217 0.8 0.031 4 • - 6993267 LNEU1245R04 LNEU1245R04 12.70 0.500 9.52 0.375 4.50 0.177 0.4 0.016 4 • - 12
