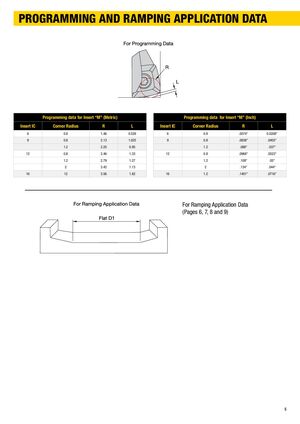

PROGRAMMING AND RAMPING APPLICATION DATA Programming data for Insert “M” (Metric) Programming data for Insert “M” (Inch) Insert IC Corner Radius R L Insert IC Corner Radius R L 6 0.8 1.46 0.529 6 0.8 .0574" 0.0208" 9 0.8 2.13 1.025 9 0.8 .0838" .0403" 1.2 2.25 0.95 1.2 .088" .037" 12 0.8 2.46 1.33 12 0.8 .0968" .0523" 1.2 2.79 1.27 1.2 .109" .05" 2 3.42 1.13 2 .134" .044" 16 12 3.56 1.82 16 1.2 .1401" .0716" For Ramping Application Data (Pages 6, 7, 8 and 9) 5
