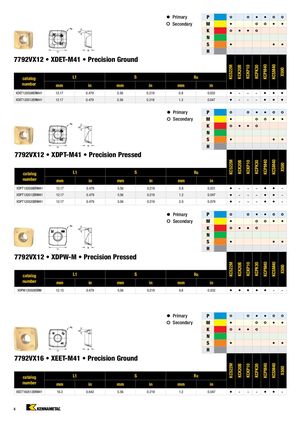

Сменные фрезерные пластины линейки 7792VX Kennametal 2024 - страница 4

• Primary P • • • • • • • Secondary M • • • • • K • • • • N S • • • H 7792VX12 • XDET-M41 • Precision Ground KCPM40 KCSM40 KC522M KCK20B KCKP10 KCPK30 X500 catalog L1 S Rε number mm in mm in mm in XDET120508ERM41 12.17 0.479 5.56 0.219 0.8 0.032 • - - - • • • XDET120512ERM41 12.17 0.479 5.56 0.219 1.2 0.047 • - - - • • • • Primary P • • • • • • • Secondary M • • • • • K • • • • N S • • • H 7792VX12 • XDPT-M41 • Precision Pressed KCPM40 KCSM40 KC522M KCK20B KCKP10 KCPK30 X500 catalog L1 S Rε number mm in mm in mm in XDPT120508ERM41 12.17 0.479 5.56 0.219 0.8 0.031 • - - - • • - XDPT120512ERM41 12.17 0.479 5.56 0.219 1.2 0.047 • - - - • • - XDPT120520ERM41 12.17 0.479 5.56 0.219 2.0 0.079 • - - - • • - • Primary P • • • • • • • Secondary M • • • • • K • • • • N S • • • H 7792VX12 • XDPW-M • Precision Pressed KCPM40 KCSM40 KC522M KCK20B KCKP10 KCPK30 X500 catalog L1 S Rε number mm in mm in mm in XDPW120508SRM 12.15 0.479 5.56 0.219 0.8 0.032 • • • • • - - • Primary P • • • • • • • Secondary M • • • • • K • • • • N S • • • H 7792VX16 • XEET-M41 • Precision Ground KCPM40 KCSM40 KC522M KCK20B KCKP10 KCPK30 X500 catalog L1 S Rε number mm in mm in mm in XEET160512ERM41 16.3 0.642 5.56 0.219 1.2 0.047 • - - - • • - 4
