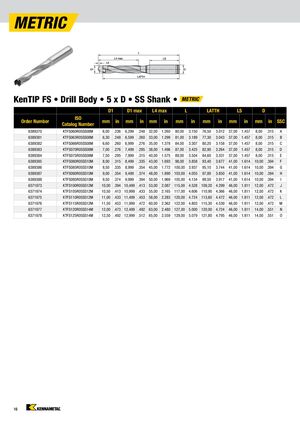

METRIC KenTIP FS • Drill Body • 5 x D • SS Shank • METRIC D1 D1 max L4 max L LATTH LS D ISO Order Number mm in mm in mm in mm in mm in mm in mm in SSC Catalog Number 6389370 KTFS060R05SS08M 6,00 .236 6,299 .248 32,00 1.260 80,00 3.150 76,50 3.012 37,00 1.457 8,00 .315 A 6389381 KTFS063R05SS08M 6,30 .248 6,599 .260 33,00 1.299 81,00 3.189 77,30 3.043 37,00 1.457 8,00 .315 B 6389382 KTFS066R05SS08M 6,60 .260 6,999 .276 35,00 1.378 84,00 3.307 80,20 3.158 37,00 1.457 8,00 .315 C 6389383 KTFS070R05SS08M 7,00 .276 7,499 .295 38,00 1.496 87,00 3.425 82,90 3.264 37,00 1.457 8,00 .315 D 6389384 KTFS075R05SS08M 7,50 .295 7,999 .315 40,00 1.575 89,00 3.504 84,60 3.331 37,00 1.457 8,00 .315 E 6389385 KTFS080R05SS10M 8,00 .315 8,499 .335 43,00 1.693 98,00 3.858 93,40 3.677 41,00 1.614 10,00 .394 F 6389386 KTFS085R05SS10M 8,50 .335 8,999 .354 45,00 1.772 100,00 3.937 95,10 3.744 41,00 1.614 10,00 .394 G 6389387 KTFS090R05SS10M 9,00 .354 9,499 .374 48,00 1.890 103,00 4.055 97,80 3.850 41,00 1.614 10,00 .394 H 6389388 KTFS095R05SS10M 9,50 .374 9,999 .394 50,00 1.969 105,00 4.134 99,50 3.917 41,00 1.614 10,00 .394 I 6371973 KTFS100R05SS12M 10,00 .394 10,499 .413 53,00 2.087 115,00 4.528 109,20 4.299 46,00 1.811 12,00 .472 J 6371974 KTFS105R05SS12M 10,50 .413 10,999 .433 55,00 2.165 117,00 4.606 110,90 4.366 46,00 1.811 12,00 .472 K 6371975 KTFS110R05SS12M 11,00 .433 11,499 .453 58,00 2.283 120,00 4.724 113,60 4.472 46,00 1.811 12,00 .472 L 6371976 KTFS115R05SS12M 11,50 .453 11,999 .472 60,00 2.362 122,00 4.803 115,30 4.539 46,00 1.811 12,00 .472 M 6371977 KTFS120R05SS14M 12,00 .473 12,499 .492 63,00 2.480 127,00 5.000 120,00 4.724 46,00 1.811 14,00 .551 N 6371978 KTFS125R05SS14M 12,50 .492 12,999 .512 65,00 2.559 129,00 5.079 121,80 4.795 46,00 1.811 14,00 .551 O 16
