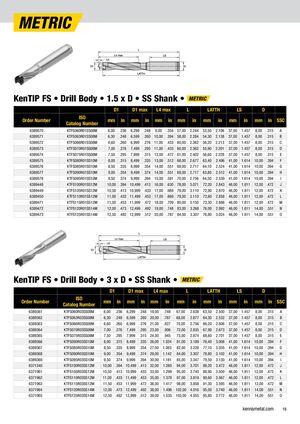

METRIC KenTIP FS • Drill Body • 1.5 x D • SS Shank • METRIC D1 D1 max L4 max L LATTH LS D ISO Order Number mm in mm in mm in mm in mm in mm in mm in SSC Catalog Number 6389570 KTFS060R01SS08M 6,00 .236 6,299 .248 9,00 .354 57,00 2.244 53,50 2.106 37,00 1.457 8,00 .315 A 6389571 KTFS063R01SS08M 6,30 .248 6,599 .260 10,00 .394 58,00 2.284 54,30 2.138 37,00 1.457 8,00 .315 B 6389572 KTFS066R01SS08M 6,60 .260 6,999 .276 11,00 .433 60,00 2.362 56,20 2.213 37,00 1.457 8,00 .315 C 6389573 KTFS070R01SS08M 7,00 .276 7,499 .295 11,00 .433 60,00 2.362 55,90 2.201 37,00 1.457 8,00 .315 D 6389574 KTFS075R01SS08M 7,50 .295 7,999 .315 12,00 .472 61,00 2.402 56,60 2.228 37,00 1.457 8,00 .315 E 6389575 KTFS080R01SS10M 8,00 .315 8,499 .335 13,00 .512 68,00 2.677 63,40 2.496 41,00 1.614 10,00 .394 F 6389576 KTFS085R01SS10M 8,50 .335 8,999 .354 14,00 .551 69,00 2.717 64,10 2.524 41,00 1.614 10,00 .394 G 6389577 KTFS090R01SS10M 9,00 .354 9,499 .374 14,00 .551 69,00 2.717 63,80 2.512 41,00 1.614 10,00 .394 H 6389578 KTFS095R01SS10M 9,50 .374 9,999 .394 15,00 .591 70,00 2.756 64,50 2.539 41,00 1.614 10,00 .394 I 6389448 KTFS100R01SS12M 10,00 .394 10,499 .413 16,00 .630 78,00 3.071 72,20 2.843 46,00 1.811 12,00 .472 J 6389449 KTFS105R01SS12M 10,50 .413 10,999 .433 17,00 .669 79,00 3.110 72,90 2.870 46,00 1.811 12,00 .472 K 6389450 KTFS110R01SS12M 11,00 .433 11,499 .453 17,00 .669 79,00 3.110 72,60 2.858 46,00 1.811 12,00 .472 L 6389471 KTFS115R01SS12M 11,50 .453 11,999 .472 18,00 .709 80,00 3.150 73,30 2.886 46,00 1.811 12,00 .472 M 6389472 KTFS120R01SS14M 12,00 .473 12,499 .492 19,00 .748 83,00 3.268 76,00 2.992 46,00 1.811 14,00 .551 N 6389473 KTFS125R01SS14M 12,50 .492 12,999 .512 20,00 .787 84,00 3.307 76,80 3.024 46,00 1.811 14,00 .551 O KenTIP FS • Drill Body • 3 x D • SS Shank • METRIC D1 D1 max L4 max L LATTH LS D ISO Order Number mm in mm in mm in mm in mm in mm in mm in SSC Catalog Number 6389361 KTFS060R03SS08M 6,00 .236 6,299 .248 19,00 .748 67,00 2.638 63,50 2.500 37,00 1.457 8,00 .315 A 6389362 KTFS063R03SS08M 6,30 .248 6,599 .260 20,00 .787 68,00 2.677 64,30 2.532 37,00 1.457 8,00 .315 B 6389363 KTFS066R03SS08M 6,60 .260 6,999 .276 21,00 .827 70,00 2.756 66,20 2.606 37,00 1.457 8,00 .315 C 6389364 KTFS070R03SS08M 7,00 .276 7,499 .295 23,00 .906 72,00 2.835 67,90 2.673 37,00 1.457 8,00 .315 D 6389365 KTFS075R03SS08M 7,50 .295 7,999 .315 24,00 .945 73,00 2.874 68,60 2.701 37,00 1.457 8,00 .315 E 6389366 KTFS080R03SS10M 8,00 .315 8,499 .335 26,00 1.024 81,00 3.189 76,40 3.008 41,00 1.614 10,00 .394 F 6389367 KTFS085R03SS10M 8,50 .335 8,999 .354 27,00 1.063 82,00 3.228 77,10 3.035 41,00 1.614 10,00 .394 G 6389368 KTFS090R03SS10M 9,00 .354 9,499 .374 29,00 1.142 84,00 3.307 78,80 3.102 41,00 1.614 10,00 .394 H 6389369 KTFS095R03SS10M 9,50 .374 9,999 .394 30,00 1.181 85,00 3.347 79,50 3.130 41,00 1.614 10,00 .394 I 6371340 KTFS100R03SS12M 10,00 .394 10,499 .413 32,00 1.260 94,00 3.701 88,20 3.472 46,00 1.811 12,00 .472 J 6371961 KTFS105R03SS12M 10,50 .413 10,999 .433 33,00 1.299 95,00 3.740 88,90 3.500 46,00 1.811 12,00 .472 K 6371962 KTFS110R03SS12M 11,00 .433 11,499 .453 35,00 1.378 97,00 3.819 90,60 3.567 46,00 1.811 12,00 .472 L 6371963 KTFS115R03SS12M 11,50 .453 11,999 .472 36,00 1.417 98,00 3.858 91,30 3.595 46,00 1.811 12,00 .472 M 6371964 KTFS120R03SS14M 12,00 .473 12,499 .492 38,00 1.496 102,00 4.016 95,00 3.740 46,00 1.811 14,00 .551 N 6371965 KTFS125R03SS14M 12,50 .492 12,999 .512 39,00 1.535 103,00 4.055 95,80 3.772 46,00 1.811 14,00 .551 O kennametal.com 15
