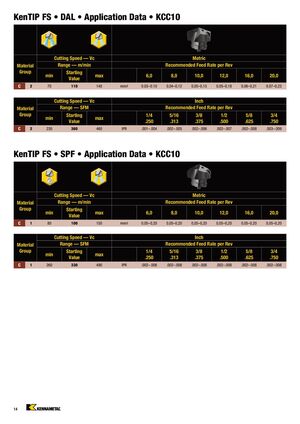

KenTIP FS • DAL • Application Data • KCC10 Cutting Speed — Vc Metric Material Range — m/min Recommended Feed Rate per Rev Group Starting min max 6,0 8,0 10,0 12,0 16,0 20,0 Value C 2 70 110 140 mm/r 0.03–0.10 0,04–0,12 0,05–0,15 0,05–0,18 0,06–0,21 0,07–0,23 Cutting Speed — Vc Inch Material Range — SFM Recommended Feed Rate per Rev Group Starting 1/4 5/16 3/8 1/2 5/8 3/4 min max Value .250 .313 .375 .500 .625 .750 C 2 230 360 460 IPR .001–.004 .002–.005 .002–.006 .002–.007 .002–.008 .003–.009 KenTIP FS • SPF • Application Data • KCC10 Cutting Speed — Vc Metric Material Range — m/min Recommended Feed Rate per Rev Group Starting min max 6,0 8,0 10,0 12,0 16,0 20,0 Value C 1 80 100 150 mm/r 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 0,05–0,20 Cutting Speed — Vc Inch Material Range — SFM Recommended Feed Rate per Rev Group Starting 1/4 5/16 3/8 1/2 5/8 3/4 min max Value .250 .313 .375 .500 .625 .750 C 1 260 330 490 IPR .002–.008 .002–.008 .002–.008 .002–.008 .002–.008 .002–.008 14
