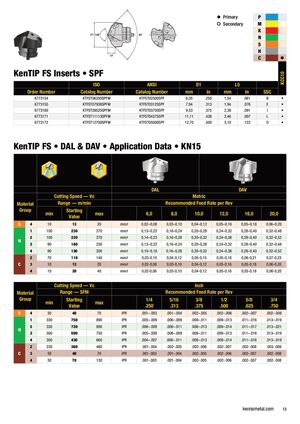

• Primary P • Secondary M K N S H C • KenTIP FS Inserts • SPF KCC10 ISO ANSI D1 L5 Order Number Catalog Number Catalog Number mm in mm in SSC 6773154 KTFST06350SPFM KTFST02500SPF 6,35 .250 1,54 .061 B • 6773155 KTFST07938SPFM KTFST03125SPF 7,94 .313 1,94 .076 E • 6773160 KTFST09525SPFM KTFST03750SPF 9,53 .375 2,38 .091 I • 6773171 KTFST11113SPFM KTFST04375SPF 11,11 .438 2,46 .097 L • 6773172 KTFST12700SPFM KTFST05000SPF 12,70 .500 3,10 .122 O • KenTIP FS • DAL & DAV • Application Data • KN15 DAL DAV Cutting Speed — Vc Metric Material Range — m/min Recommended Feed Rate per Rev Group Starting min max 6,0 8,0 10,0 12,0 16,0 20,0 Value S 4 10 13 20 mm/r 0,02–0,08 0,03–0,10 0,04–0,12 0,05–0,16 0,05–0,18 0,06–0,20 1 100 230 270 mm/r 0,13–0,22 0,16–0,24 0,20–0,28 0,24–0,32 0,28–0,40 0,32–0,48 2 100 220 270 mm/r 0,14–0,23 0,16–0,28 0,20–0,32 0,24–0,36 0,28–0,40 0,32–0,52 N 3 90 180 230 mm/r 0,13–0,22 0,16–0,24 0,20–0,28 0,24–0,32 0,28–0,40 0,32–0,48 4 90 130 200 mm/r 0,10–0,18 0,16–0,28 0,20–0,32 0,24–0,36 0,28–0,40 0,32–0,52 2 70 110 140 mm/r 0,03-0,10 0,04-0,12 0,05-0,15 0,05-0,18 0,06-0,21 0,07-0,23 C 3 10 13 20 mm/r 0,02-0,08 0,03-0,10 0,04-0,12 0,05-0,16 0,05-0,18 0,06-0,20 4 10 20 40 mm/r 0,02-0,08 0,03-0,10 0,04-0,12 0,05-0,16 0,05-0,18 0,06-0,20 Cutting Speed — Vc Inch Material Range — SFM Recommended Feed Rate per Rev Group Starting 1/4 5/16 3/8 1/2 5/8 3/4 min max Value .250 .313 .375 .500 .625 .750 S 4 30 40 70 IPR .001–.003 .001–.004 .002–.005 .002–.006 .002–.007 .002–.008 1 330 750 890 IPR .005–.009 .006–.009 .008–.011 .009–.013 .011–.016 .013–.019 2 330 720 890 IPR .006–.009 .006–.011 .008–.013 .009–.014 .011–.017 .013–.021 N 3 300 590 750 IPR .005–.009 .006–.009 .008–.011 .009–.013 .011–.016 .013–.019 4 300 430 660 IPR .004–.007 .006–.011 .008–.013 .009–.014 .011–.016 .013–.019 2 230 360 460 IPR .001-.004 .002-.005 .002-.006 .002-.007 .002-.008 .003-.009 C 3 30 40 70 IPR .001-.003 .001-.004 .002-.005 .002-.006 .002-.007 .002-.008 4 30 70 130 IPR .001-.003 .001-.004 .002-.005 .002-.006 .002-.007 .002-.008 kennametal.com 13
