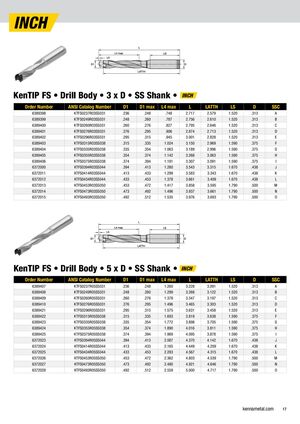

INCH KenTIP FS • Drill Body • 3 x D • SS Shank • INCH Order Number ANSI Catalog Number D1 D1 max L4 max L LATTH LS D SSC 6389398 KTFS0237R03SS031 .236 .248 .748 2.717 2.579 1.520 .313 A 6389399 KTFS0249R03SS031 .248 .260 .787 2.756 2.610 1.520 .313 B 6389400 KTFS0260R03SS031 .260 .276 .827 2.795 2.646 1.520 .313 C 6389401 KTFS0276R03SS031 .276 .295 .906 2.874 2.713 1.520 .313 D 6389402 KTFS0296R03SS031 .295 .315 .945 3.001 2.828 1.520 .313 E 6389403 KTFS0315R03SS038 .315 .335 1.024 3.150 2.969 1.590 .375 F 6389404 KTFS0335R03SS038 .335 .354 1.063 3.189 2.996 1.590 .375 G 6389405 KTFS0355R03SS038 .354 .374 1.142 3.268 3.063 1.590 .375 H 6389406 KTFS0375R03SS038 .374 .394 1.181 3.307 3.091 1.590 .375 I 6372000 KTFS0394R03SS044 .394 .413 1.260 3.543 3.315 1.670 .438 J 6372011 KTFS0414R03SS044 .413 .433 1.299 3.583 3.343 1.670 .438 K 6372012 KTFS0434R03SS044 .433 .453 1.378 3.661 3.409 1.670 .438 L 6372013 KTFS0453R03SS050 .453 .472 1.417 3.858 3.595 1.790 .500 M 6372014 KTFS0473R03SS050 .473 .492 1.496 3.937 3.661 1.790 .500 N 6372015 KTFS0493R03SS050 .492 .512 1.535 3.976 3.693 1.790 .500 O KenTIP FS • Drill Body • 5 x D • SS Shank • INCH Order Number ANSI Catalog Number D1 D1 max L4 max L LATTH LS D SSC 6389407 KTFS0237R05SS031 .236 .248 1.260 3.228 3.091 1.520 .313 A 6389408 KTFS0249R05SS031 .248 .260 1.299 3.268 3.122 1.520 .313 B 6389409 KTFS0260R05SS031 .260 .276 1.378 3.347 3.197 1.520 .313 C 6389410 KTFS0276R05SS031 .276 .295 1.496 3.465 3.303 1.520 .313 D 6389421 KTFS0296R05SS031 .295 .315 1.575 3.631 3.458 1.520 .313 E 6389422 KTFS0315R05SS038 .315 .335 1.693 3.819 3.638 1.590 .375 F 6389423 KTFS0335R05SS038 .335 .354 1.772 3.898 3.705 1.590 .375 G 6389424 KTFS0355R05SS038 .354 .374 1.890 4.016 3.811 1.590 .375 H 6389425 KTFS0375R05SS038 .374 .394 1.969 4.095 3.878 1.590 .375 I 6372023 KTFS0394R05SS044 .394 .413 2.087 4.370 4.142 1.670 .438 J 6372024 KTFS0414R05SS044 .413 .433 2.165 4.449 4.209 1.670 .438 K 6372025 KTFS0434R05SS044 .433 .453 2.283 4.567 4.315 1.670 .438 L 6372026 KTFS0453R05SS050 .453 .472 2.362 4.803 4.539 1.790 .500 M 6372027 KTFS0473R05SS050 .473 .492 2.480 4.921 4.646 1.790 .500 N 6372028 KTFS0493R05SS050 .492 .512 2.559 5.000 4.717 1.790 .500 O kennametal.com 17
