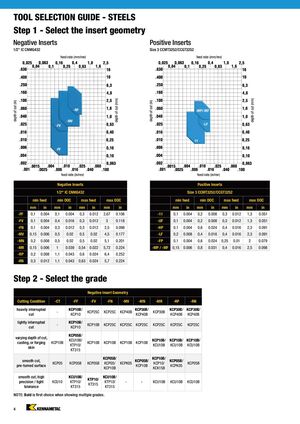

TOOL SELECTION GUIDE - STEELS Step 1 - Select the insert geometry Negative Inserts Positive Inserts 1/2” IC CNMG432 Size 3 CCMT3252/CCGT3252 feed rate (mm/rev) feed rate (mm/rev) depth of cut (mm) depth of cut (mm) depth of cut (in) depth of cut (in) -RP -11 -MP/-MF -MV -FV -LF 11 -FF feed rate (in/rev) feed rate (in/rev) Negative Inserts Positive Inserts 1/2" IC CNMG432 Size 3 CCMT3252/CCGT3252 min feed min DOC max feed max DOC min feed min DOC max feed max DOC mm in mm in mm in mm in mm in mm in mm in mm in -FF 0,1 0.004 0,1 0.004 0,3 0.012 2,67 0.106 -11 0,1 0.004 0,2 0.008 0,3 0.012 1,3 0.051 -FV 0,1 0.004 0,4 0.016 0,3 0.012 3 0.118 -UF 0,1 0.004 0,2 0.008 0,3 0.012 1,3 0.051 -FN 0,1 0.004 0,3 0.012 0,3 0.012 2,5 0.098 -HP 0,1 0.004 0,6 0.024 0,4 0.016 2,3 0.091 -MV 0,15 0.006 0,5 0.02 0,5 0.02 4,5 0.177 -LF 0,2 0.008 0,4 0.016 0,4 0.016 2,3 0.091 -MN 0,2 0.008 0,5 0.02 0,5 0.02 5,1 0.201 -FP 0,1 0.004 0,6 0.024 0,25 0.01 2 0.079 -MR 0,15 0.006 1 0.039 0,54 0.022 5,72 0.224 -MP / -MF 0,15 0.006 0,8 0.031 0,4 0.016 2,5 0.098 -RP 0,2 0.008 1,1 0.043 0,6 0.024 6,4 0.252 -RN 0,3 0.012 1,1 0.043 0,63 0.024 5,7 0.224 Step 2 - Select the grade Negative Insert Geometry Cutting Condition -CT -FF -FV -FN -MV -MN -MR -RP -RN heavily interrupted KCP10B/ KCP30B/ KCP30B/ KCP30B/ - KCP25C KCP25C KCP40B KCP30B cut KCP10 KCP40B KCP40B KCP40B lightly interrupted KCP10B/ - KCP10B KCP25C KCP25C KCP25C KCP25C KCP25C KCP25C cut KCP10 KCP05B/ varying depth of cut, KCU10B/ KCP10B/ KCP10B/ KCP10B/ casting, or forging KCP10B KCP10B KCP10B KCP10B KCP10B KTP10/ KCU10B KCU10B KCU10B skin KT315 KCP05B/ KCP10B/ smooth cut, KCP05B/ KCP05B/ KCP05 KCP05B KCP05B KCP05/ KCPK05 KCP10/ KCP05B pre-turned surface KCP10B KCPK05 KCP10B KCK15B smooth cut, high KCU10B/ KCU10B/ KTP10/ precision / tight KCU10 KTP10/ KTP10/ - - KCU10B KCU10B KCU10B KT315 tolerance KT315 KT315 NOTE: Bold is first choice when showing multiple grades. 4
