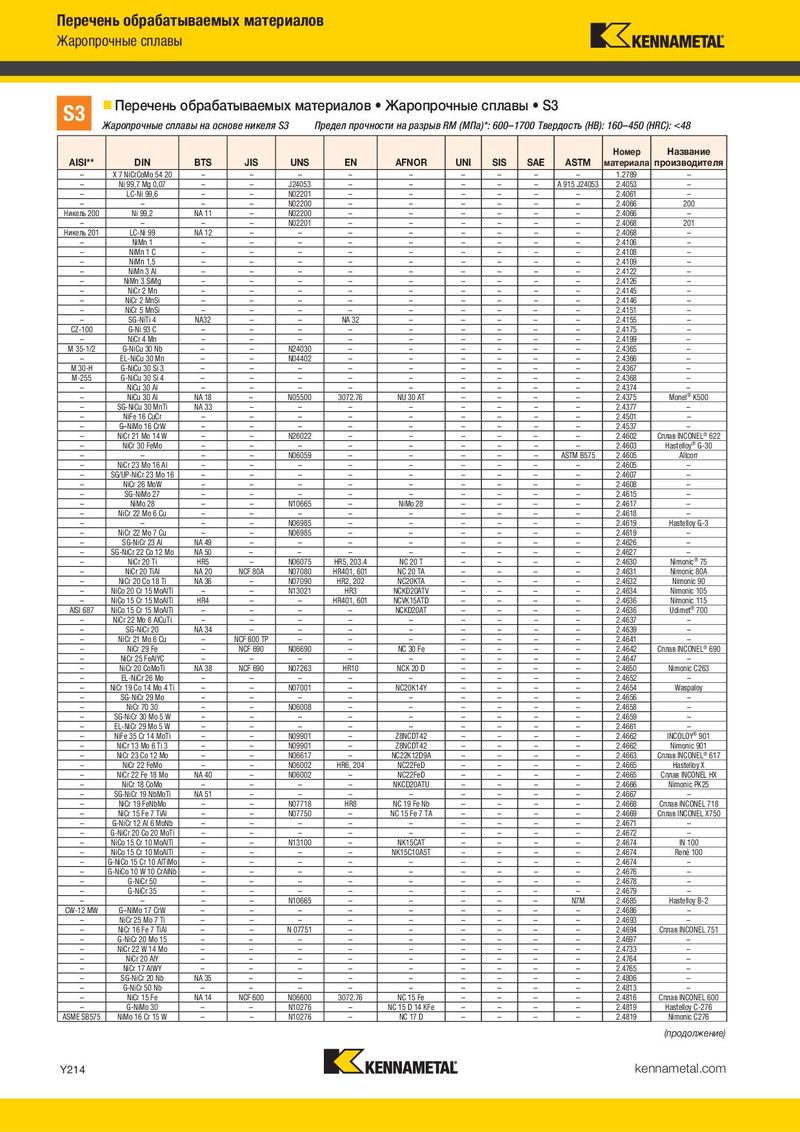

Перечень обрабатываемых материалов • Жаропрочные сплавы • S3 Перечень обрабатываемых материалов • Жаропрочные сплавы • S3 (продолжение)
S3 S3
Жаропрочные сплавы на основе никеля S3 Предел прочности на разрыв RM (МПа)*: 600–1700 Твердость (HB): 160–450 (HRC): <48 Жаропрочные сплавы на основе никеля S3 Предел прочности на разрыв RM (МПа)*: 600–1700 Твердость (HB): 160–450 (HRC): <48
Номер Название Номер Название
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | материала производителя | ||
| – | X 7 NiCrCoMo 54 20 | – | – | – | – | – | – | – | – | – | 1.2789 | – | |
| – | Ni 99,7 Mg 0,07 | – | – | J24053 | – | – | – | – | – | A 915 J24053 | 2.4053 | – | |
| – | LC-Ni 99,6 | – | – | N02201 | – | – | – | – | – | – | 2.4061 | – | |
| – | – | – | – | N02200 | – | – | – | – | – | – | 2.4066 | 200 | |
| Никель 200 | Ni 99,2 | NA 11 | – | N02200 | – | – | – | – | – | – | 2.4066 | – | |
| – | – | – | – | N02201 | – | – | – | – | – | – | 2.4068 | 201 | |
| Никель 201 | LC-Ni 99 | NA 12 | – | – | – | – | – | – | – | – | 2.4068 | – | |
| – | NiMn 1 | – | – | – | – | – | – | – | – | – | 2.4106 | – | |
| – | NiMn 1 C | – | – | – | – | – | – | – | – | – | 2.4108 | – | |
| – | NiMn 1,5 | – | – | – | – | – | – | – | – | – | 2.4109 | – | |
| – | NiMn 3 Al | – | – | – | – | – | – | – | – | – | 2.4122 | – | |
| – | NiMn 3 SiMg | – | – | – | – | – | – | – | – | – | 2.4126 | – | |
| – | NiCr 2 Mn | – | – | – | – | – | – | – | – | – | 2.4145 | – |
| AISI** | DIN BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | материала | производителя | ||||
| – | SG-NICr 21 Mo 9 Nb | – | – | – | – | – | – | – | – | – | 2.4831 | – | |||
| – | NiCr 20 Mo 15 | – | – | – | – | – | – | – | – | – | 2.4836 | – | |||
| – | SG-NiCr 20 Mo 15 | – | – | – | – | – | – | – | – | – | 2.4839 | – | |||
| – | – – | – | N06601 | – | – | – | – | – | – | 2.4851 | Haynes® 601 | ||||
| – | NiCr 23 Fe | – | NCF 601 | N06601 | – | NC 23 Fe 14 A | – | – | – | – | 2.4851 | Сплав INCONEL 601 | |||
| – | NiFe 33 Cr 25 Co | – | – | – | – | – | – | – | – | – | 2.4854 | – | |||
| – | NiCr 19 Mo 9 Si | – | – | – | – | – | – | – | – | – | 2.4855 | – | |||
| ASME SB443 | NiCr 22 Mo 9 Nb | – | – | N06625 | – | NC 22 Fe DNb | – | – | – | – | 2.4856 | Haynes 625 | |||
| ASME SB443.4 | NiCr 22 Mo 9 Nb | NA 21 | NCF 625 | N06625 | – | NC 22 Fe DNb | – | – | – | – | 2.4856 | Сплав INCONEL 625 | |||
| ASME SB163 | NiCr 21 Mo | – | – | N08825 | 3072.76 | NC21FeDU | – | – | – | – | 2.4858 | INCOLOY® 825 | |||
| – | NiCr 60 15 | – | – | – | – | – | – | – | – | – | 2.4867 | – | |||
| – | NiCr 80 20 | – | – | – | – | – | – | – | – | – | 2.4869 | – | |||
| – | NiCr 20 AlSi | – | – | – | – | – | – | – | – | – | 2.4872 | – |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | Номер материала | Название производителя |
| – – | X 7 NiCrCoMo 54 20 Ni 99,7 Mg 0,07 | – – | – – | – J24053 | – – | – – | – – | – – | – – | – A 915 J24053 | 1.2789 2.4053 | – – |
| – | LC-Ni 99,6 | – | – | N02201 | – | – | – | – | – | – | 2.4061 | – |
| – Никель200 | – Ni 99,2 | – NA 11 | – – | N02200 N02200 | – – | – – | – – | – – | – – | – – | 2.4066 2.4066 | 200 – |
| – Никель201 | – LC-Ni 99 | – NA 12 | – – | N02201 – | – – | – – | – – | – – | – – | – – | 2.4068 2.4068 | 201 – |
| – | NiMn 1 | – | – | – | – | – | – | – | – | – | 2.4106 | – |
| – – | NiMn 1 C NiMn 1,5 | – – | – – | – – | – – | – – | – – | – – | – – | – – | 2.4108 2.4109 | – – |
| – – | NiMn 3 Al NiMn 3 SiMg | – – | – – | – – | – – | – – | – – | – – | – – | – – | 2.4122 24126 | – – |
| – | NiCr 2 Mn NiC 2 MSi | – | – | – | – | – | – | – | – | – | . 2.4145 24146 | – |
| – | r n | – | – | – | – | – | – | – | – | – | . | – |
| – – | NiCr 5 MnSi SG-NiTi 4 | – NA32 | – – | – – | – NA 32 | – – | – – | – – | – – | – – | 2.4151 2.4155 | – – |
| CZ-100 | G-Ni 93 C | – | – | – | – | – | – | – | – | – | 2.4175 | – |
| – M 35-1/2 – | NiCr 4 Mn G-NiCu 30 Nb EL-NiCu 30 Mn | – – – | – – – | – N24030 N04402 | – – – | – – – | – – – | – – – | – – – | – – – | 2.4199 2.4365 2.4366 | – – – |
| M 30-H M-255 – | G-NiCu 30 Si 3 G-NiCu 30 Si 4 NiCu 30 Al | – – – | – – – | – – – | – – – | – – – | – – – | – – – | – – – | – – – | 2.4367 2.4368 2.4374 | – – – |
| – – | NiCu 30 Al SG-NiCu 30 MnTi | NA 18 NA 33 | – – | N05500 – | 3072.76 – | NU 30 AT – | – – | – – | – – | – – | 2.4375 24377 | Monel®K500 – |
| – | NiFe 16 CuCr | – | – | – | – | – | – | – | – | – | . 24501 | – |
| – | G–NiMo 16 CrW | – | – | – | – | – | – | – | – | – | . 24537 | – |
| – – | NiCr 21 Mo 14 W NiCr 30 FeMo | – – | – – | N26022 – | – – | – – | – – | – – | – – | – – | . 2.4602 2.4603 | СплавINCONEL®622 Hastelloy®G-30 |
| – | – | – | – | N06059 | – | – | – | – | – | ASTM B575 | 2.4605 | Allcorr |
| – | NiCr 23 Mo 16 Al | – | – | – | – | – | – | – | – | – | 2.4605 | – |
| – – | SG/UP-NiCr 23 Mo 16 NiCr 26 MoW | – – | – – | – – | – – | – – | – – | – – | – – | – – | 2.4607 2.4608 | – – |
| – | SG-NiMo 27 | – | – | – | – | – | – | – | – | – | 2.4615 | – |
| – – | NiMo 28 NiCr 22 Mo 6 Cu | – – | – – | N10665 – | – – | NiMo 28 – | – – | – – | – – | – – | 2.4617 2.4618 | – – |
| – | – | – | – | N06985 | – | – | – | – | – | – | 2.4619 | Hastelloy G-3 |
| – | NiCr 22 Mo 7 Cu | – | – | N06985 | – | – | – | – | – | – | 24619 | – |
| – – | SG-NiCr 23 Al SG-NiCr 22 C 12 M | NA 49 NA 50 | – – | – – | – – | – – | – – | – – | – – | – – | . 2.4626 24627 | – – |
| – | o o NiCr 20 Ti | HR5 | – | N06075 | HR5, 203.4 | NC 20 T | – | – | – | – | . 2.4630 | Nimonic®75 |
| – | NiCr 20 TiAl | NA 20 | NCF 80A | N07080 | HR401, 601 | NC 20 TA | – | – | – | – | 2.4631 | Nimonic 80A |
| – – | NiCr 20 Co 18 Ti NiCo 20 Cr 15 MoAlTi | NA 36 – | – – | N07090 N13021 | HR2, 202 HR3 | NC20KTA NCKD20ATV | – – | – – | – – | – – | 2.4632 2.4634 | Nimonic 90 Nimonic 105 |
| – | NiCo 15 Cr 15 MoAlTi | HR4 | – | – | HR401, 601 | NCVK15ATD | – | – | – | – | 2.4636 | Nimonic 115 |
| AlSl 687 – | NiCo 15 Cr 15 MoAlTi NiCr 22 Mo 8 AlCuTi | – – | – – | – – | – – | NCKD20AT – | – – | – – | – – | – – | 2.4636 2.4637 | Udimet®700 – |
| – | SG-NiCr 20 | NA 34 | – | – | – | – | – | – | – | – | 2.4639 | – |
| – | NiCr 21 Mo 6 Cu | – | NCF 600 TP | – | – | – | – | – | – | – | 2.4641 | – |
| – – | NiCr 29 Fe NiCr 25 FeAlYC | – – | NCF 690 – | N06690 – | – – | NC 30 Fe – | – – | – – | – – | – – | 2.4642 24647 | СплавINCONEL®690 – |
| – – | NiCr 20 CoMoTi EL-NiCr 26 Mo | NA 38 – | NCF 690 – | N07263 – | HR10 – | NCK 20 D – | – – | – – | – – | – – | . 2.4650 24652 | Nimonic C263 – |
| – | NiC 19 C 14 M 4 Ti | – | – | N07001 | – | NC20K14Y | – | – | – | – | . 24654 | Wl |
| r o o SGNiC 29 M | . 24656 | aspaoy | ||||||||||
| – – | -r o NiCr 70 30 | – – | – – | – N06008 | – – | – – | – – | – – | – – | – – | . 2.4658 | – – |
| – | SG-NiCr 30 Mo 5 W | – | – | – | – | – | – | – | – | – | 2.4659 | – |
| – – | EL-NiCr 29 Mo 5 W NiFe 35 Cr 14 MoTi | – – | – – | – N09901 | – – | – Z8NCDT42 | – – | – – | – – | – – | 2.4661 2.4662 | – INCOLOY®901 |
| – – – | NiCr 13 Mo 6 Ti 3 NiCr 23 Co 12 Mo NiCr 22 FeMo | – – – | – – – | N09901 N06617 N06002 | – – HR6, 204 | Z8NCDT42 NC22K12D9A NC22FeD | – – – | – – – | – – – | – – – | 2.4662 2.4663 2.4665 | Nimonic 901 СплавINCONEL®617 Hastelloy X |
| – | NiCr 22 Fe 18 Mo | NA 40 | – | N06002 | – | NC22FeD | – | – | – | – | 2.4665 | СплавINCONEL HX |
| – – | NiCr 18 CoMo SG-NiCr 19 NbMoTi | – NA 51 | – – | – – | – – | NKCD20ATU – | – – | – – | – – | – – | 2.4666 24667 | Nimonic PK25 – |
| – | NiCr 19 FeNbMo | – | – | N07718 | HR8 | NC 19 Fe Nb | – | – | – | – | . 24668 | СплавINCONEL 718 |
| – | NiCr 15 Fe 7 TiAl | – | – | N07750 | – | NC 15 Fe 7 TA | – | – | – | – | . 2.4669 | СплавINCONEL X750 |
| – | G-NiCr 12 Al 6 MoNb | – | – | – | – | – | – | – | – | – | 2.4671 | – |
| – – – | G-NiCr 20 Co 20 MoTi NiCo 15 Cr 10 MoAlTi NiCo 15 Cr 10 MoAlTi | – – – | – – – | – N13100 – | – – – | – NK15CAT NK15C10A5T | – – – | – – – | – – – | – – – | 2.4672 2.4674 2.4674 | – IN 100 René 100 |
| – – | G-NiCo 15 Cr 10 AlTiMo G-NiCo 10 W 10 CrAlNb | – – | – – | – – | – – | – – | – – | – – | – – | – – | 2.4674 2.4676 | – – |
| – | G-NiCr 50 | – | – | – | – | – | – | – | – | – | 2.4678 | – |
| – – | G-NiCr 35 – | – – | – – | – N10665 | – – | – – | – – | – – | – – | – N7M | 2.4679 2.4685 | – Hastelloy B-2 |
| CW-12 MW | G–NiMo 17 CrW | – | – | – | – | – | – | – | – | – | 2.4686 | – |
| – – | NiCr 25 Mo 7 Ti NiCr 16 Fe 7 TiAl | – – | – – | – N 07751 | – – | – – | – – | – – | – – | – – | 2.4693 24694 | – СплавINCONEL 751 |
| – | G-NiCr 20 Mo 15 NiC 22 W 14 M | – | – | – | – | – | – | – | – | – | . 2.4697 24733 | – |
| – – | r o NiCr 20 AlY | – – | – – | – – | – – | – – | – – | – – | – – | – – | . 2.4764 | – – |
| – – | NiCr 17 AlWY SG-NiCr 20 Nb | – NA 35 | – – | – – | – – | – – | – – | – – | – – | – – | 2.4765 2.4806 | – – |
| – – | G-NiCr 50 Nb NiCr 15 Fe | – NA 14 | – NCF 600 | – N06600 | – 3072.76 | – NC 15 Fe | – – | – – | – – | – – | 2.4813 2.4816 | – СплавINCONEL 600 |
| – ASME SB575 | G-NiMo 30 NiMo 16 Cr 15 W | – – | – – | N10276 N10276 | – – | NC 15 D 14 KFe NC 17 D | – – | – – | – – | – – | 2.4819 2.4819 | Hastelloy C-276 Nimonic C276 |
| (продолжение) |
